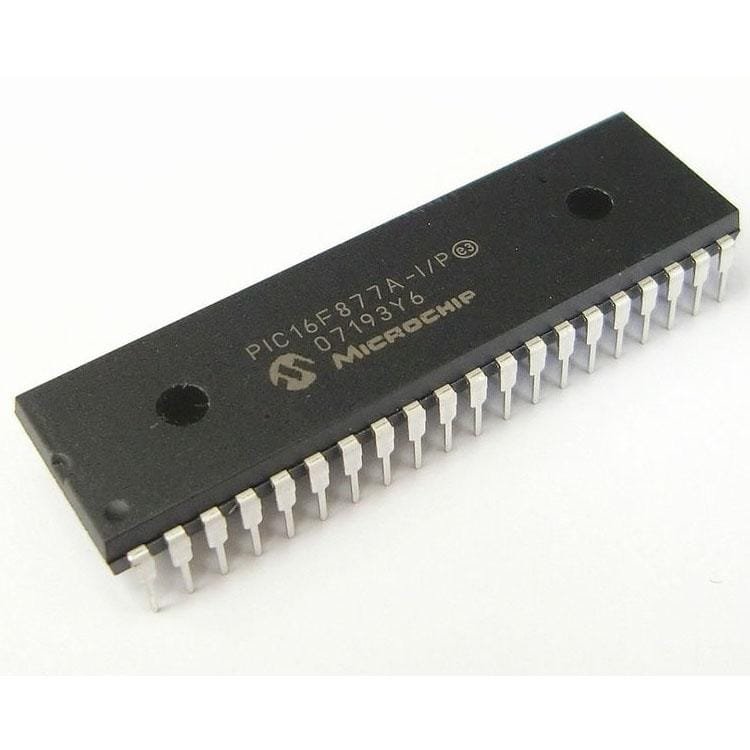

Detailed Features of PIC16F877A
PIC16F877A –Detailed Features | |
| CPU | 8-bit PIC |
| Architecture | 8 |
| Program Memory Size (Kbytes) | 14 |
| RAM (bytes) | 368 |
| EEPROM/HEF | 256/HEF |
| Pin Count | 40 |
| Max. CPU Speed (MHz) | 20 |
| Peripheral Pin select (PPS) | No |
| Internal Oscillator | No |
| No. Of comparators | 2 |
| No. Of Operational Amplifier | 0 |
| No. Of ADC channels | 14 |
| Max ADC Resolution (bits) | 10 |
| ADC with Computation | No |
| Number of DAC Converter | 0 |
| Max DAC resolution | 0 |
| Internal Voltage Reference | Yes |
| Zero Cross Detect | No |
| No. Of 8-bit timers | 2 |
| No. Of 16-bit Timers | 1 |
| Signal Measurement Timer | 0 |
| Hardware Limit Timer | 0 |
| No. Of PWM outputs | 0 |
| Max PWM resolution | 10 |
| Angular Timer | No |
| Math Accelerator | No |
| No. Of UART module | 1 |
| No. Of SPI Module | 1 |
| No. Of I2C module | 1 |
| No. Of USB Module | 0 |
| Windowed Watchdog Timer (WWDT) | No |
| CRC/Scan | No |
| Numerically Controlled Oscillator | 0 |
| Cap. Touch Channels | 11 |
| Segment LCD | 0 |
| Minimum Operating Temperature (*C) | -40 |
| Maximum Operating Temperature (*C) | 125 |
| Minimum Operating Voltage (V) | 2 |
| Maximum Operating Voltage (V) | 5.5 |
| High Voltage Capable | No |
Applications
- Multiple DIY Projects
- Very good choice if you are learning PIC
- Projects requiring Multiple I/O interfaces and communications
- Replacement for Arduino Module
- Ideal for more advanced level A/D applications in automotive, industrial, appliances and consumer applications.
