Description:
What’s Orange Pi PC 2?
It’s an open-source single-board computer. It can run Android 4.4, Ubuntu, Debian, Rasberry Pi Image, as well as the banana pi Image. It uses the AllWinner H3 SoC, and has 1GB DDR3 SDRAM.
Hardware specification | ||
| CPU | • H5 High Performance Quad-core 64-bit Cortex-A53 • Integrated multimedia acceleration engine • Hardware Java acceleration • Integrated hardware floating-point coprocessor | |
| GPU | • Full scene over-sampled 4X anti-aliasing engine with no additional bandwidth usage • High Performance Hexa-core Mali450 • OpenGL ES 2.0/1.1/1.0, OpenVG 1.1, EGL • 40 GFlops, Pixel fill rate greater than 2.7GPixel/s | |
| Memory (SDRAM) | 1GB DDR3 (shared with GPU) | |

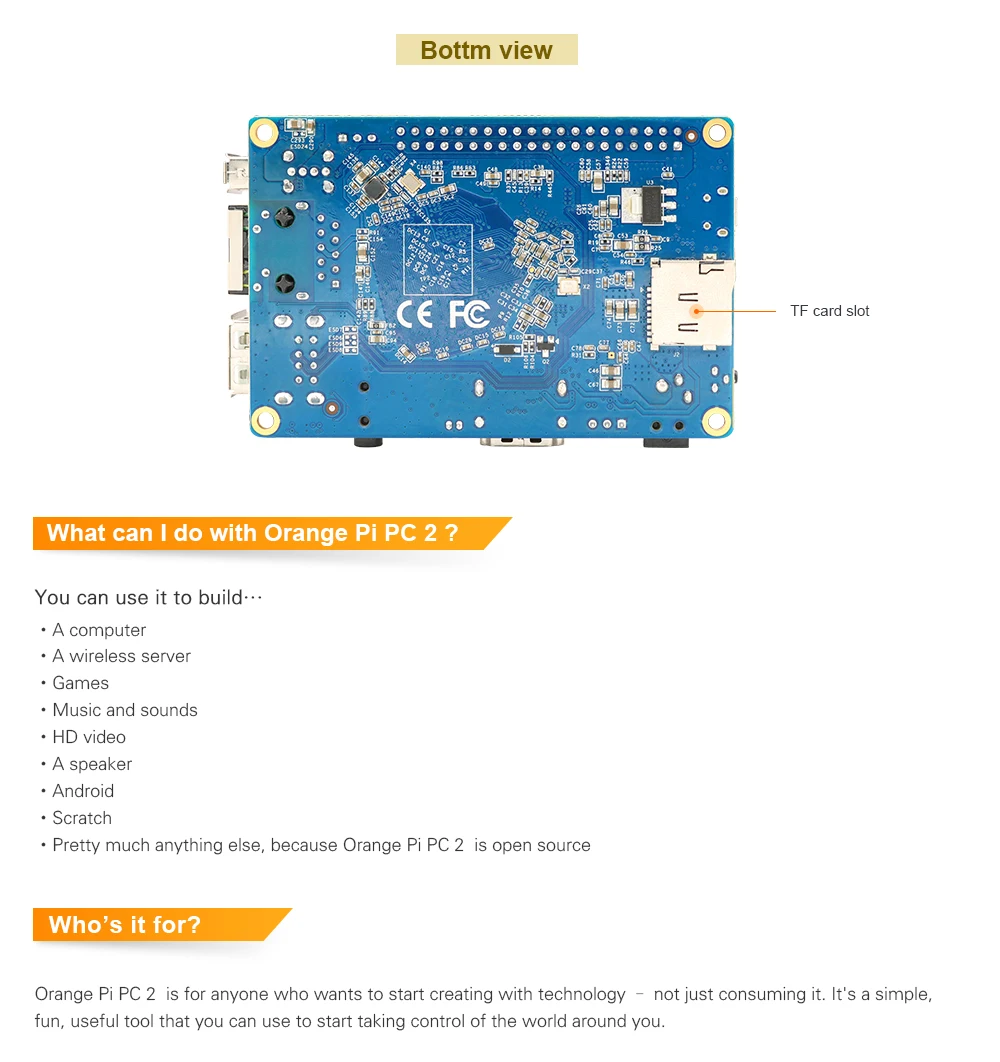

| Onboard Storage | TF card (Max. 64GB) / NOR flash(2MB) | |
| Onboard Network | 1000M/100M Ethernet RJ45 | |
| Video Input | A CSI input connector Camera: Supports 8-bit YUV422 CMOS sensor interface Supports CCIR656 protocol for NTSC and PAL Supports SM pixel camera sensor Supports video capture solution up to 1080p@30fps | |
| Audio Input | MIC | |
| Video Outputs | Supports HDMI output with HDCP Supports HDMI CEC Supports HDMI 30 function Integrated CVBS Supports simultaneous output of HDMI and CVBS | |
| Audio Output | 3.5 mm Jack and HDMI | |
| Power Source | DC input can supply power, but USB OTG input don’t supply power | |
| USB 2.0 Ports | Three USB 2.0 HOST, one USB 2.0 OTG | |
| Buttons | Power Button(SW4) | |
| Low-level peripherals | 40 Pins Header,compatible with Raspberry Pi B+
| |
| GPIO(1×3) pin | UART, ground. | |
| LED | Power led & Status led | |
| Key | IR input, POWER | |
| Supported OS | Android, Ubuntu, Debian, Rasberian | |

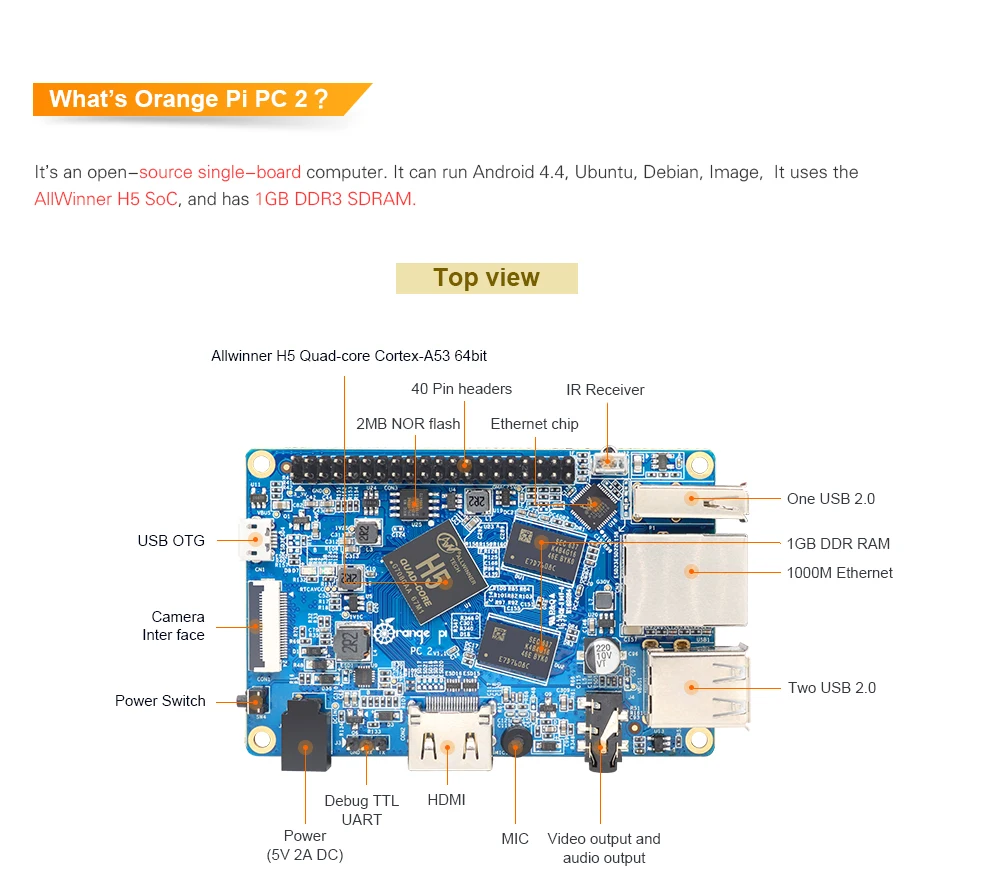

Interface definition | ||
| Product size | 85 mm × 55mm | |
| Weight | 70g | |
