NEXTION 4.3 Inch Multifunctional HMI Display Module Compatible with Arduino and Raspberry Pi (Intelligent / P Series)
What is the Price of 4.3 inch NEXTION HMI Display?
You can now purchase this NEXTION 4.3 inch Display (P Series) for best prices at TechonicsLTD.com, the Wholesaler and Distributor of HMI LCDs.

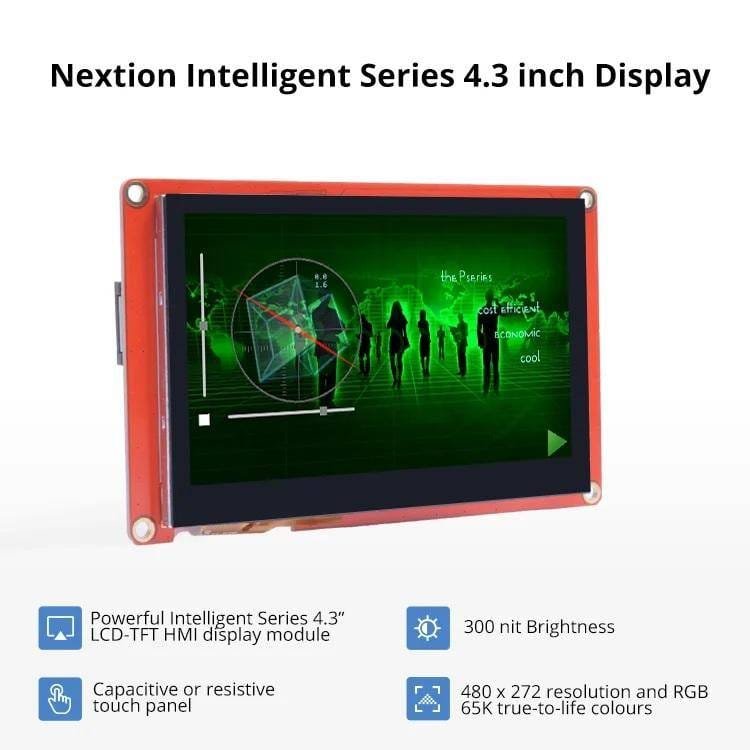

Nextion 4.3 inch Display (Intelligent Series)
Nextion Intelligent Series offers a cutting-edge Human-Machine Interface (HMI) solution that seamlessly blends hardware and software for rapid development and intuitive user experiences.
Key Features:
- Advanced Hardware: Powerful MCU, ample Flash storage, and generous RAM for smooth performance and complex applications.

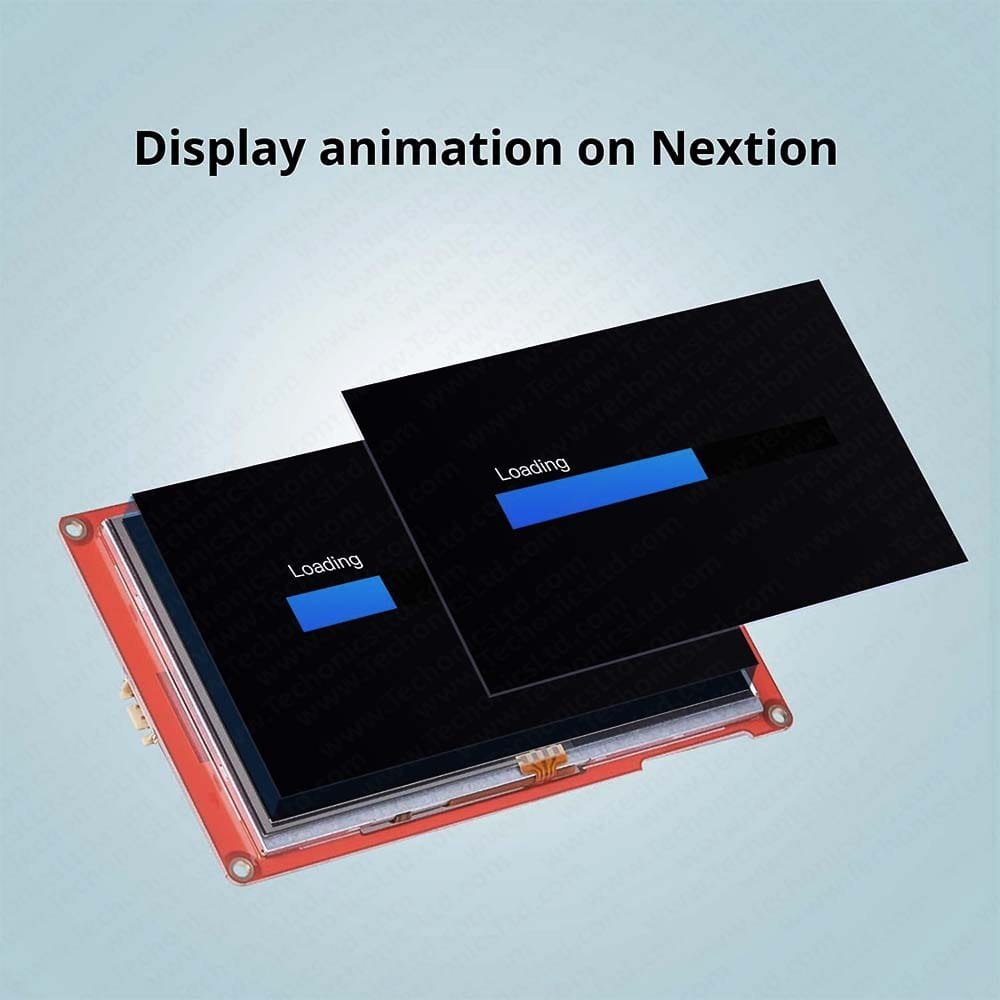

- Rich Multimedia Capabilities: Support for audio, video, and animation to enhance user engagement.

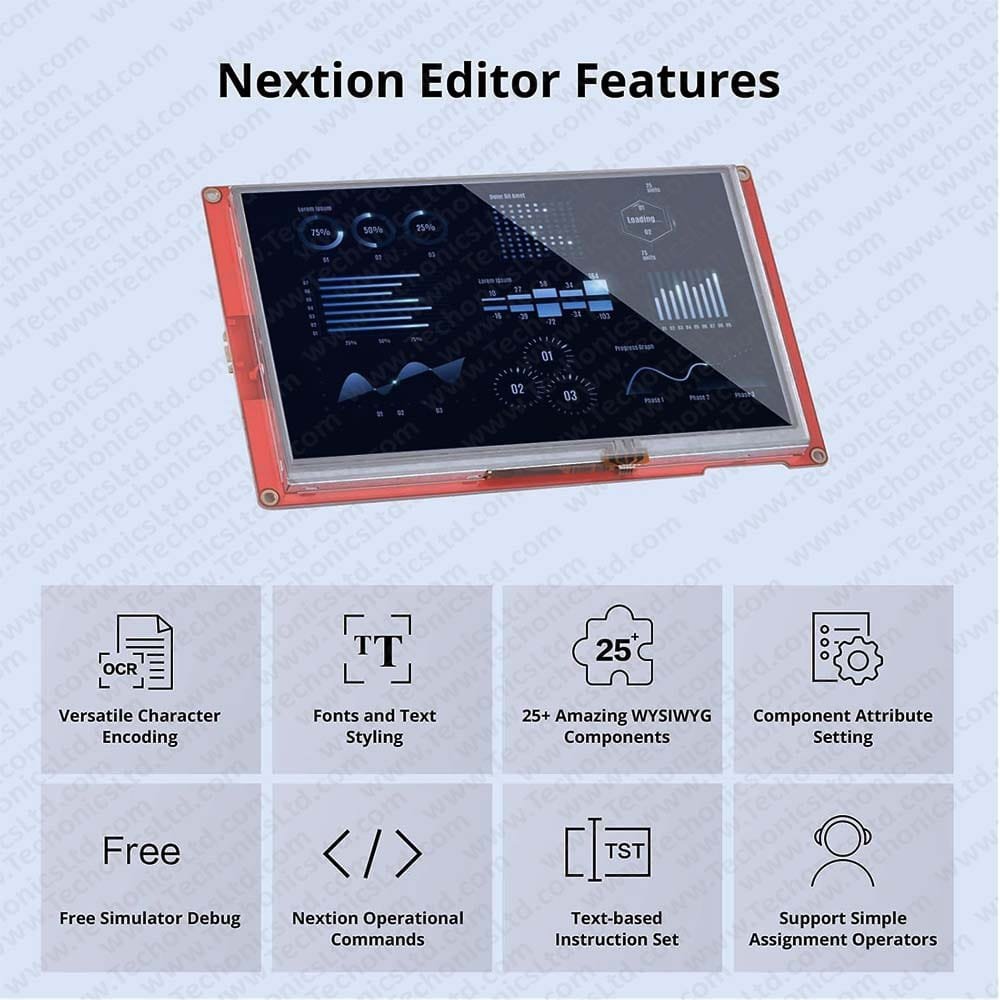

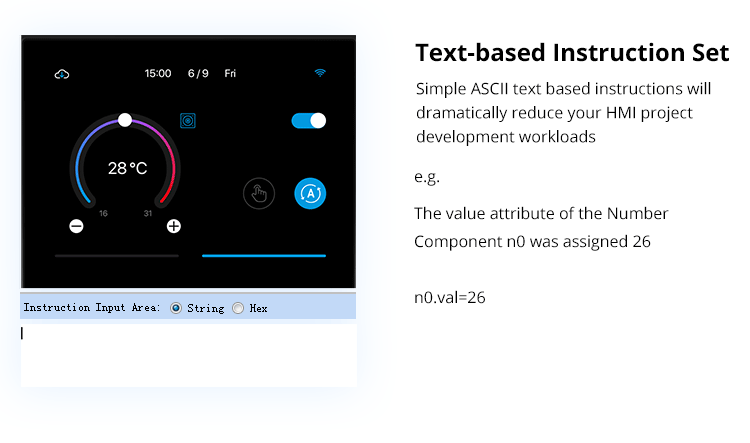

- Intuitive Software: Drag-and-drop interface and simple scripting for effortless GUI design.
- Flexible Connectivity: Serial communication for easy integration with microcontrollers and other devices.

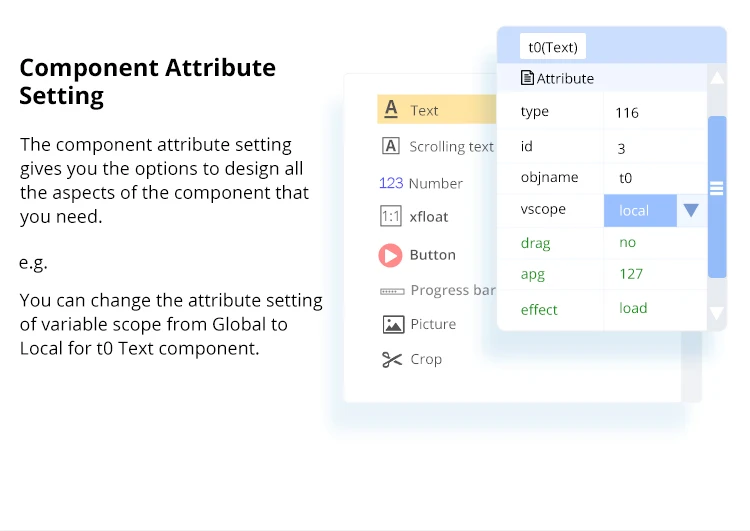

- Customizable Interfaces: Create stunning and interactive user interfaces tailored to your specific needs.
The Nextion Advantage:
- Accelerated Development: Rapidly prototype and deploy your HMI projects.
- Enhanced User Experience: Engage users with visually appealing and interactive interfaces.
- Reliable Performance: Robust hardware and software for dependable operation.
- Cost-Effective Solution: Affordable and efficient HMI solution.

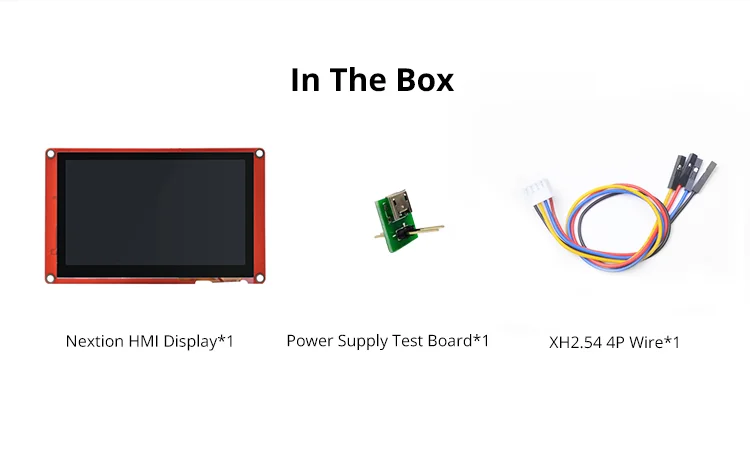

Nextion NX4827P043-011R Package Includes:

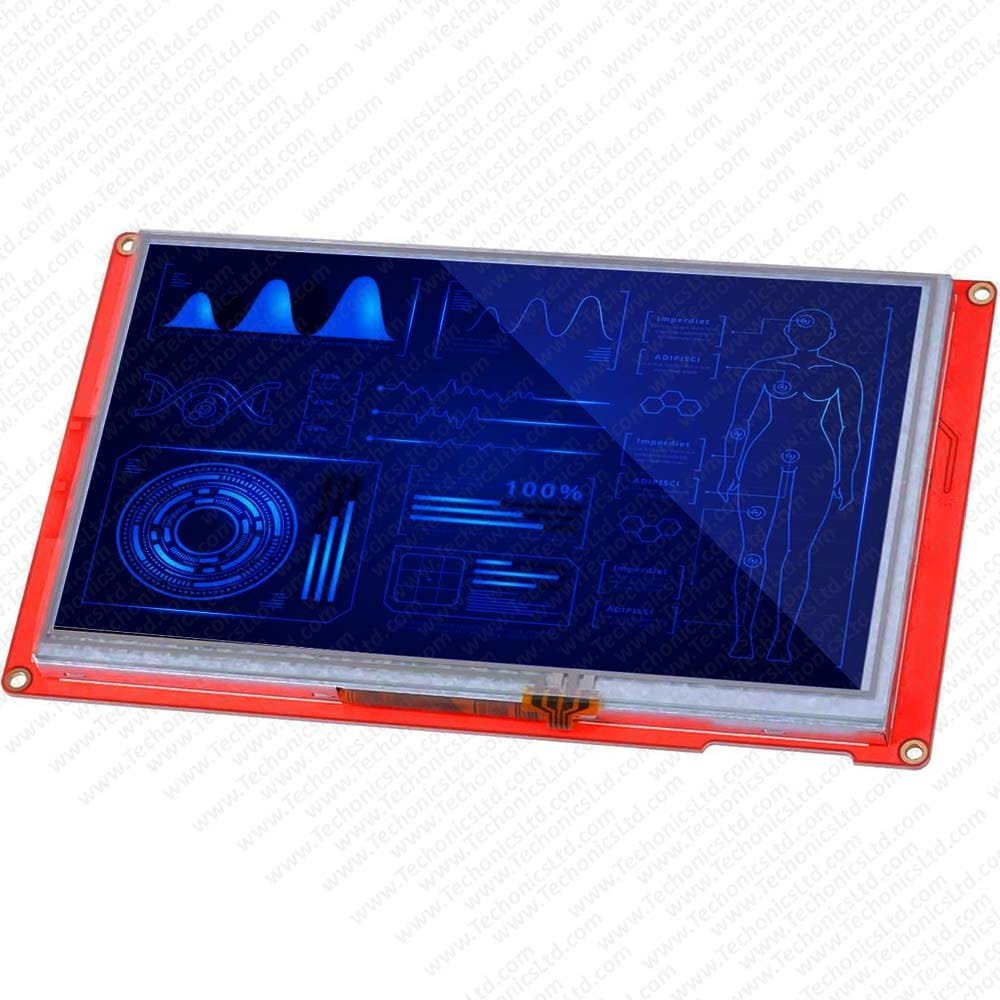

- Nextion NX4827P043-011R HMI Display
- Power Supply Test Board
- XH2.54 4P Wire
Important Note: Always verify the power supply compatibility with your Nextion display using the provided test board to prevent damage.
Elevate your projects with Nextion Intelligent Series and experience the future of HMI technology.
Important Note: Always verify the power supply compatibility with your Nextion display using the provided test board to prevent damage.
Nextion Models
| Nextion Type | Intelligent Series |
| Nextion Models | NX4827P043-011R (4.3-inch resistive touchscreen without enclosure) |
Specifications
| Data | Description | |
| Color | 65K 65536 colors | 16 bit 565, 5R-6G-5B |
| Layout size | 120mm(L)×74mm(W)×6.2mm(H) | NX4827P043-011R |
| Active Area (A.A.) | 105.50mm(L)×67.20mm(W) | |
| Visual Area (V.A.) | 95.04mm(L)×53.86mm(W) | |
| Resolution | 480×272 pixel | Also can be set as 272×480 |
| Touch type | Resistive | |
| Touches | > 1 million | |
| Backlight | LED | |
| Backlight lifetime (Average) | >30,000 Hours | |
| Brightness | 300nit | 0% to 100%, the interval of adjustment is 1% |
| Weight | 98g |
Electronic Characteristics
| Test Conditions | Min | Typical | Max | Unit | |
| Operating Voltage | 4.65 | 5 | 6.5 | V | |
| Operating Current | VCC=+5V, Brightness is 100% | – | 220 | – | mA |
| SLEEP Mode | – | 170 | – | mA | |
| Power supply recommend：5V, 1.0A, DC | |||||
Working Environment & Reliability Parameter
| Test Conditions | Min | Typical | Max | Unit | |
| Working Temperature | 5V, Humidity 60% | -20 | 25 | 70 | °C |
| Storage Temperature | -30 | 25 | 85 | °C | |
| Working Humidity | 25°C | 10% | 60% | 90% | RH |
Interfaces Performance
| Test Conditions | Min | Typical | Max | Unit | |
| Serial Port Baudrate | Standard | 2400 | 9600 | 921600 | bps |
| Output High Voltage (TXD) | IOH=1mA | 3.0 | 5.0 | Vin | V |
| Output Low Voltage(TXD) | IOL=-1mA | 0.1 | 0.2 | V | |
| Input High Voltage(RXD) | 3.0 | 5.0 | Vin | V | |
| Input Low Voltage(RXD) | -0.7 | 0.0 | 1.3 | V | |
| Serial Port Mode | 3.3V/5.0V TTL | ||||
| Serial Port | 4Pin_2.54mm | ||||
| USB interface | NO | ||||
| SD card socket | Yes (FAT32 format), support maximum 32G Micro SD Card presence of *.tft file on microSD: socket is vital to upgrade Nextion HMI design/firmware. Intelligent Series only: Editor Guide for microSD card runtime usage / see Instruction Set. | ||||

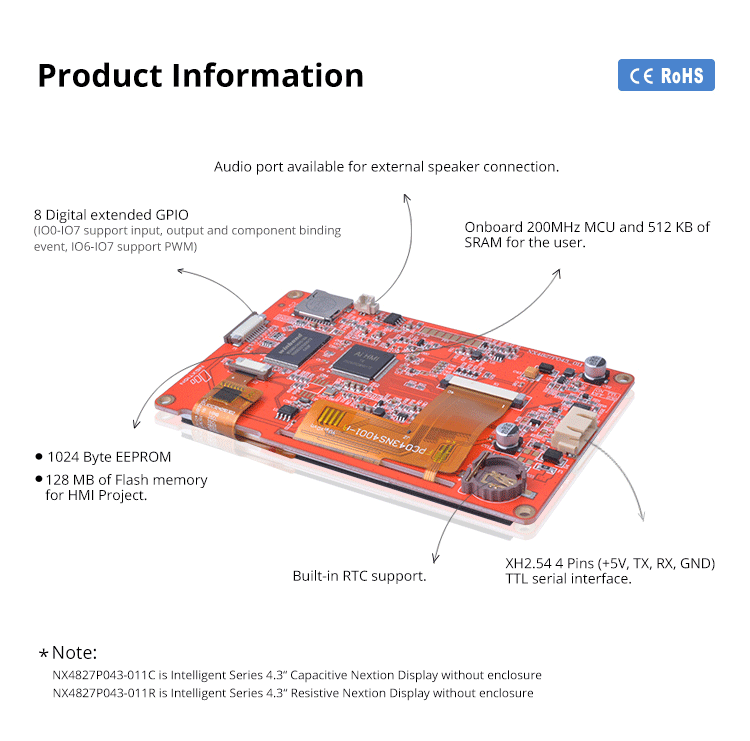

| Extended IO | 8 Digital extended GPIO | ||||
| IO0-IO7 support input, output and component binding event * IO pin / ports are not exclusive, limit current draw to 1mA recommended | |||||
| IO6-IO7 support PWM | |||||
| RTC | built-in RTC support (Battery type: CR1220) | ||||
Vin: the input voltage of the power supply
Memory Features
| Memory Type | Test Conditions | Min | Typical | Max | Unit |
| FLASH Memory | Store fonts and images | 120 | MB | ||
| User Storage | EEPROM | 1024 | BYTE | ||
| RAM Memory | Store variables | 512 | KB | ||
| Instruction Buffer | Instruction Buffer | 4096 | BYTE |
Audio Features
| Speaker | Parameter | Min | Typical | Max | Unit |
| Power | – | 0.5 | – | 1.5 | W |
| Audio Connector Type：1.25T-2-2A (1.25mm pitch 2-pin housing) | |||||
NX4827P043-011R don’t have a speaker in the package.
Product Certificates
CE-EMC, RoHS
