NEXTION 3.5 Inch Multifunctional HMI Display Module Compatible with Arduino and Raspberry Pi (Basic/ T Series)
What is the Latest Price of 3.5 inch NEXTION HMI Display (NX4832T035)?
You can now purchase this NEXTION 3.5 inch display (T Series) for best wholesale price from Techonics LTD, the Wholesaler and Distributor of HMI LCDs and other Industrial Automation Products.
Why use Nextion?
- Firstly, Nextion is easy to use. With the Nextion Editor software, you can easily create an intuitive touch user interface even if you are a beginner.
- For example, by adding a static picture as your background and defining functions by components, you can easily and quickly make a simple GUI in only a few minutes.
- With the drag and drop components and simple ASCII text-based instructions, you do not have to spend a huge amount of time on your HMI project development.

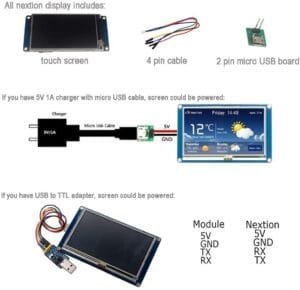

Nextion Display Connection
Nextion display has a built-in ARM microcontroller that controls the display, for example, it takes care of generating buttons, creating text, store images, or change the background. Nextion display communicates with any microcontroller using serial at a 9600 baud rate.
So, Nextion screen works with any board that has serial capabilities like Raspberry Pi, ESP8266, ESP32, etc.
Nextion Display Weather Station Kit
Nextion display could be used together with other accessories to assemble DIY kit, for example, weather station kit.
Lightweight GSM Mobile Phone
Introduction:
With the microcontroller and Nextion HMI display, you can easily make a lightweight phone that is able to make calls, receive calls, send, and also receive SMS. It uses a GSM module to connect to the mobile network and Nextion display to visualize GUI interfaces.
What do you need?
- microcontroller board
- GPRS shield
- Nextion display
- sim card

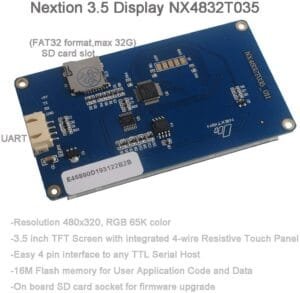

Specifications
| Data | Description | |
| Color | 64K 65536 colors | 16 bit 565, 5R-6G-5B |
| Layout size | ||
| 100.5 (L)×54.94 (W)×5.45 (H) | NX4832T035_011R | |
| Active Area (A.A.) | 85.50mm(L)×54.94mm(W) | |
| Visual Area (V.A.) | 73.44mm(L)×48.96mm(W) | |
| Resolution | 480×320 pixel | Also can be set as 320×480 |
| Touch type | Resistive | |
| Touches | > 1 million | |
| Backlight | LED | |
| Backlight lifetime (Average) | >30,000 Hours | |
| Brightness | 200nit (NX4832T035_011N) | 0% to 100%, the interval of adjustment is 1% |
| 180 nit (NX4832T035_011R) | 0% to 100%, the interval of adjustment is 1% | |
| Weight | 38.2g (NX4832T035_011N) | |
| 48.2g (NX4832T035_011R) |
Electronic Characteristics
| Test Conditions | Min | Typical | Max | Unit | |
| Operating Voltage | 4.75 | 5 | 7 | V | |
| Operating Current | VCC=+5V, Brightness is 100% | – | 145 | – | mA |
| SLEEP Mode | – | 15 | – | mA | |

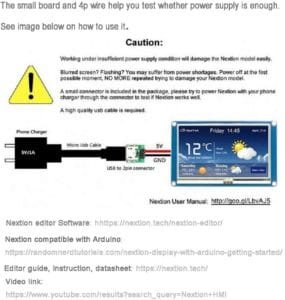

| Power supply recommend：5V, 500mA, DC | |||||
Working Environment & Reliability Parameter
| Test Conditions | Min | Typical | Max | Unit | |
| Working Temperature | 5V, Humidity 60% | -20 | 25 | 70 | °C |
| Storage Temperature | -30 | 25 | 85 | °C | |
| Working Humidity | 25°C | 10% | 60% | 90% | RH |
Interfaces Performance
| Test Conditions | Min | Typical | Max | Unit | |
| Serial Port Baudrate | Standard | 2400 | 9600 | 115200 | bps |
| Output High Voltage | IOH=-1mA | 3.0 | 3.2 | V | |
| Output Low Voltage | IOL=1mA | 0.1 | 0.2 | V | |
| Input High Voltage | 2.0 | 3.3 | 5.0 | V | |
| Input Low Voltage | -0.7 | 0.0 | 1.3 | V | |
| Serial Port Mode | TTL | ||||
| Serial Port | 4Pin_2.54mm | ||||
| USB interface | NO | ||||
| SD card socket | Yes (FAT32 format), support maximum 32G Micro SD Card * microSD card socket is exclusively used to upgrade Nextion firmware /HMI design | ||||
Memory Features
| Memory Type | Test Conditions | Min | Typical | Max | Unit |
| FLASH Memory | Store fonts and images | 16 | MB | ||
| RAM Memory | Store variables | 3584 | BYTE |
