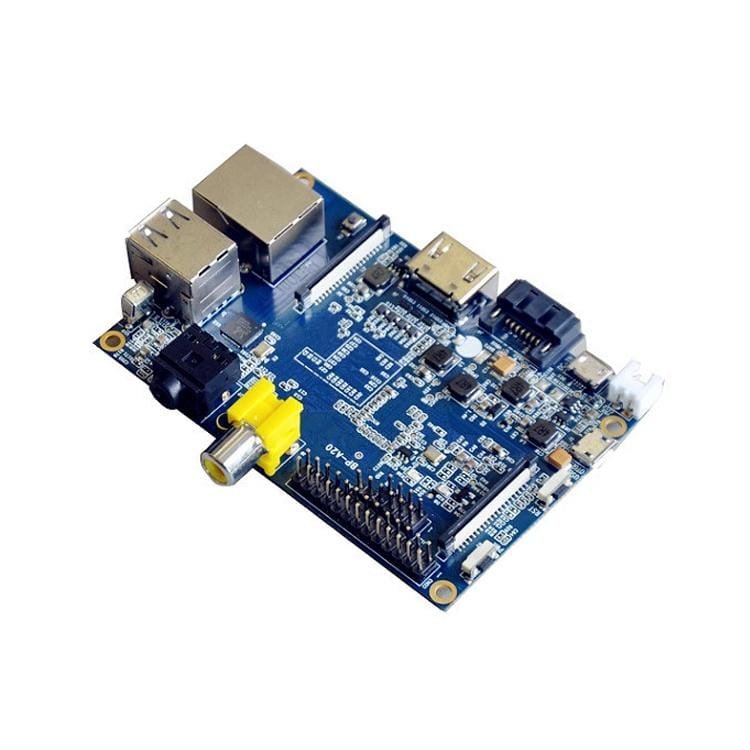

Banana Pi M1 BPI-M1 A20 dual-core Open Source Development Board

28 Items sold in last 3 months

Add to compare

Add to wishlist

Delivery to Pakistan

Shipping via Leopards

1-3 Business Days (Normally)

Shipping calculated at checkout.

Delivery to US

Shipping via DHL, UPS, or FedEx.

3-12 Business Days (Normally)

Shipping calculated at checkout.

Payment Methods:

Overview

Banana PI is an open source platform that was created to run open source elastos.org OS among others. Banana Pi 2 core, Android 4.2 product, which is much better than Raspberry Pi.

Equipment Banana Pi runs on Android, Debian Linux, Ubuntu Linux, openseuse Linux and images that run on Raspberry Pi and cubiedard.

Banana Pi has a gigabit Ethernet port and a SATA socket. It can work with Android 4.2.2 smoothly. Size Banana Pi M1 is about the same size as the credit card. it can easily run the game, since it supports 1080 P High Definition video output. GPIO is compatible with Raspberry Pi and can manage Raspberry Pi images directly.

Detailed Description

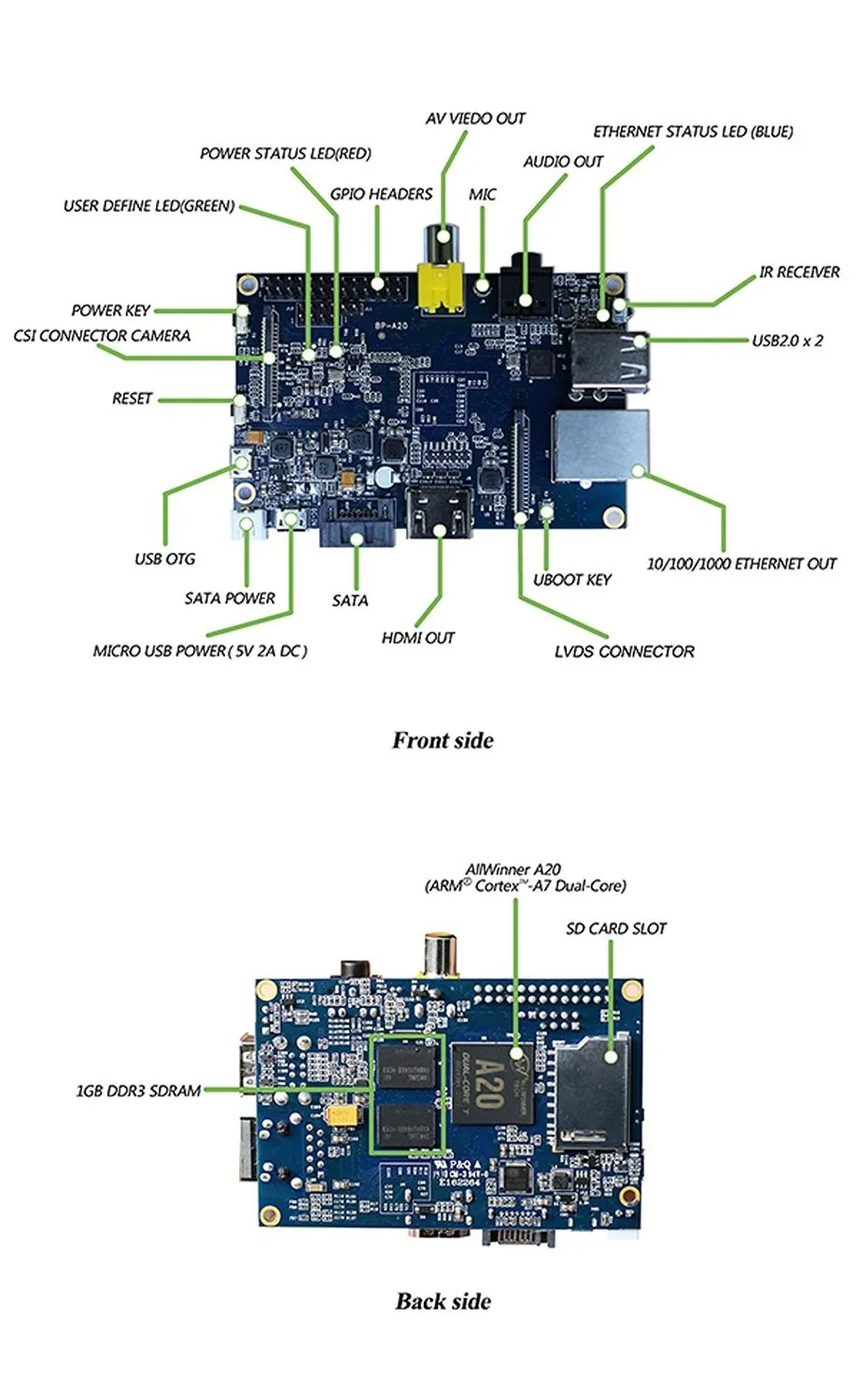

1. Hardware features

CPU

A20 ARM® CortexTM-A7 dual core

GPU

ARM Mali400 MP2 is compatible with OpenGL ES 2.0/1.1

RAM

1GB DDR3 (shared with GPU)

Onboard storage

SD card (up to 64GB) / MMC card slot can be expanded to 2T SATA hard drive

Onboard network

10/100/1000 RJ45 Ethernet (optional USB WIFI Dongle)

Camera input

Camera module with CSI interface

Audio input

Mic

Video output

HDMI, CVBS, LVDS/RGB

Audio output

3.5 mm audio port and HDMI

power supply

5V DC voltage via MicroUSB(DC) or MicroUSB (OTG)

USB 2.0 interface

Button

reset button

Power button

UBoot button

GPIO (2X13) port

GPIO, UART, I2C bus, SPI bus

CAN bus, ADC, PWM, +3.3v, +5v, ground

LED light

Power status LED light (red)

Network port status LED light (blue)

User-defined LED light (green)

remote control

Infrared

Supported operating systems


Android	Android 4.4	Debian	Ubuntu	Raspbian

Supported software

Scratch

Appearance specification

Product Size

92 mm × 60mm

weight

48g
