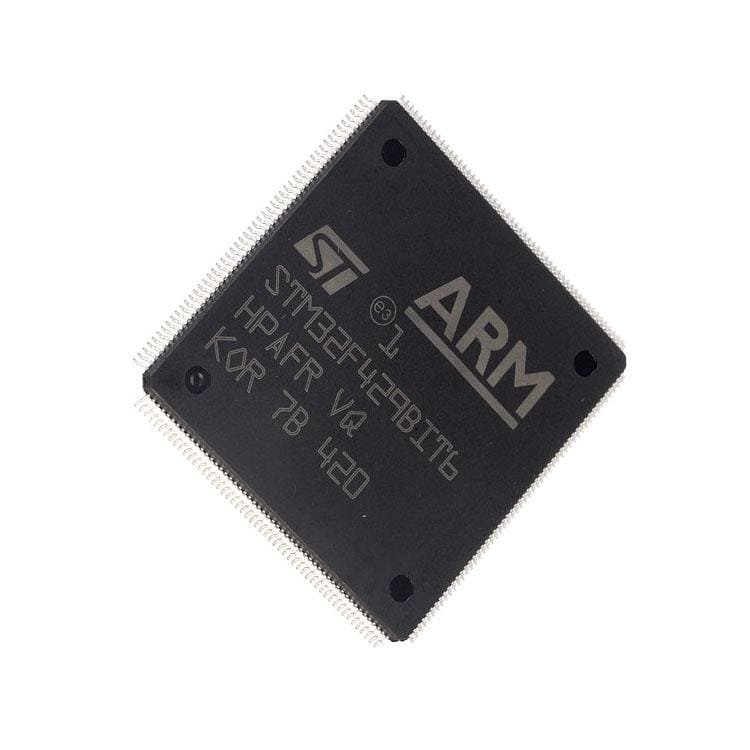

The STM32F429BIT6 is a 32-bit, ARM-based microcontroller with 256 Kbytes of Flash memory and a CPU frequency of 180MHz. The microcontroller incorporates the high-performance ARM Cortex M4 RISC core which features a Floating Point Unit (FPU). A full set of DSP instructions and a Memory Protection Unit (MPU) enhance application security. An extensive range of enhanced peripherals and I/Os, enhanced communication interfaces and multiple high speed timers further enhance the usability of this microcontroller. Suitable for a wide range of automotive, industrial and commercial applications.
- Package LQFP 208
- Three 12-bit A/D converters
- Two 12-bit D/A converters
- Adaptive Real-Time (ART) accelerator
- Flexible external memory controller
- LCD-TFT Controller up to XGA resolution
- Low-power operation
- Sleep, stop and standby modes
- Parallel camera interface
- True random number generator
- CRC Calculation unit
- RTC with subsecond accuracy and hardware calendar
- 96-bit Unique ID
- Advanced connectivity
- Debug mode
- 16-stream DMA controller
- Independent and system watchdog timers
General Parametrics:
| Device | STM32F101VCT6 |
| Package | LQFP100 |
| Flash (Kbytes) | 256 |
| SRAM (Kbytes) | 32 |
| FSMC | Yes |
| Ethernet | – |
| Advanced control timers | – |
| General purpose timers | 4 |
| Basic timers | 2 |
| Other timers | – |
| Random number generator | – |
| SPI | 3 |
| I²C | 2 |
| USART | 5 |
| USB | – |
| CAN | – |
| SDIO | – |
| 12-bit ADC | Yes |
| (no. of channels) | 16 |
| GPIOs | 80 |
| Max CPU frequency | 36MHz |
| Operating voltage | 2.0 to 3.6V |
| Operating temperature | -40°C to +85°C |
