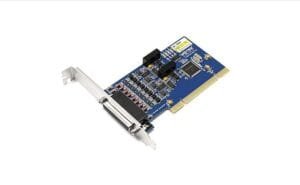

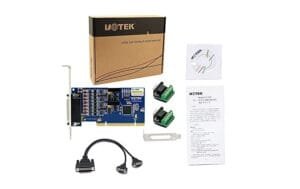

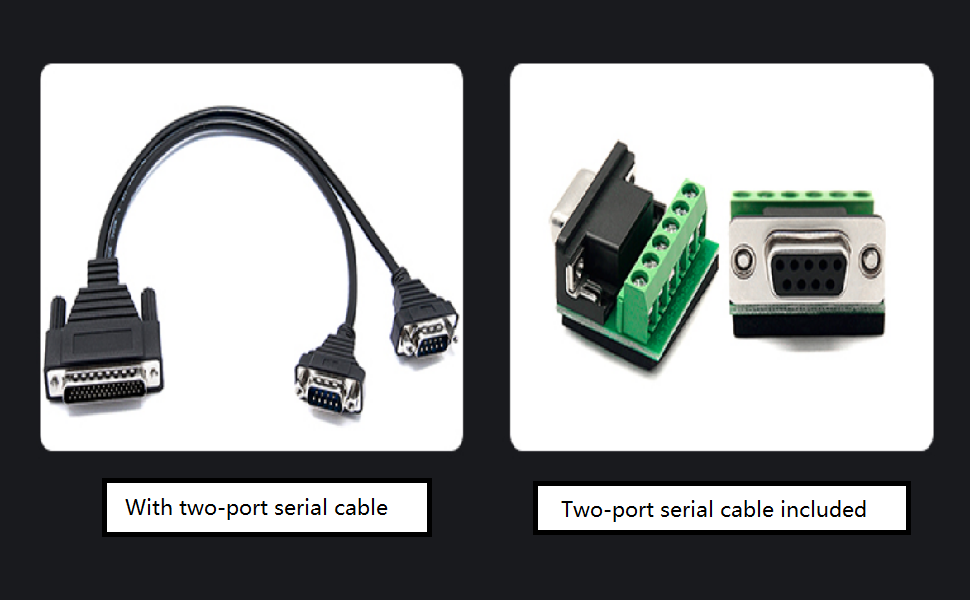

UTEK UT-732i | 2-Port RS485 Serial Card | PCI | Opto-Isolated | High-Speed Opto-Isolated Computer Expansion Card | with 2 Serial 9-Pin Cables | Industrial Grade
Original price was: ₨15,500.00.₨13,800.00Current price is: ₨13,800.00.
Introduction:

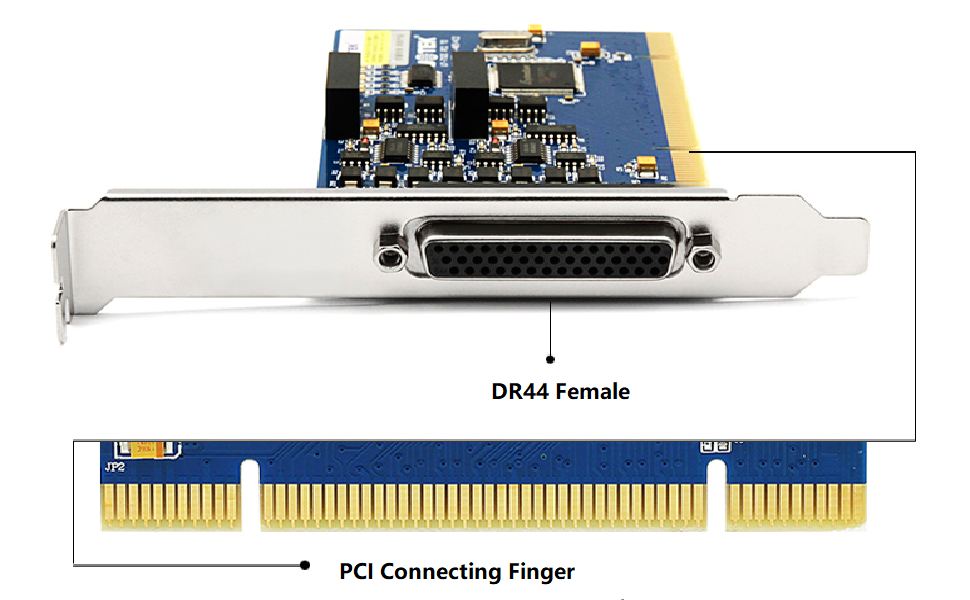

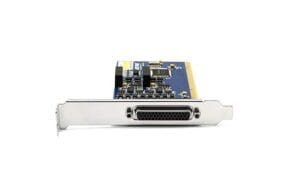

- Connector: DR44 female x1
- BUS: 32 bits universal PCI
- Signal: RS-422：T/R+, T/R-, RXD+, RXD-, GND
RS-485：Data+(A) Data-(B) GND
- Transmission rate: 300bps-921.6Kbps
- Data bits: 5, 6, 7, 8
- Stop bits: 1, 1.5, 2
- Check bits: None, Even, Odd, Space, Mark
- Flow control: RTS/CTS XON/XOFF
- Operating temperature: -40℃～85℃
- Optical isolation: 2,500Vrms isolated voltage, 500DC continuous specialized DC/DC module
- Interface protection: RS-422 & RS-485 provides with 2KV lightning surge, ±15KV ESD protection
- Transmission distance: 1.2km for RS-485/422
- System: Win98/2000、WinXP/2003/Vista/2008/7/8/8.132/64, DOS/Linux 2.4/2.6
Out of stock
UTEK UT-732i 2-Port RS485 Serial Card Price in Pakistan

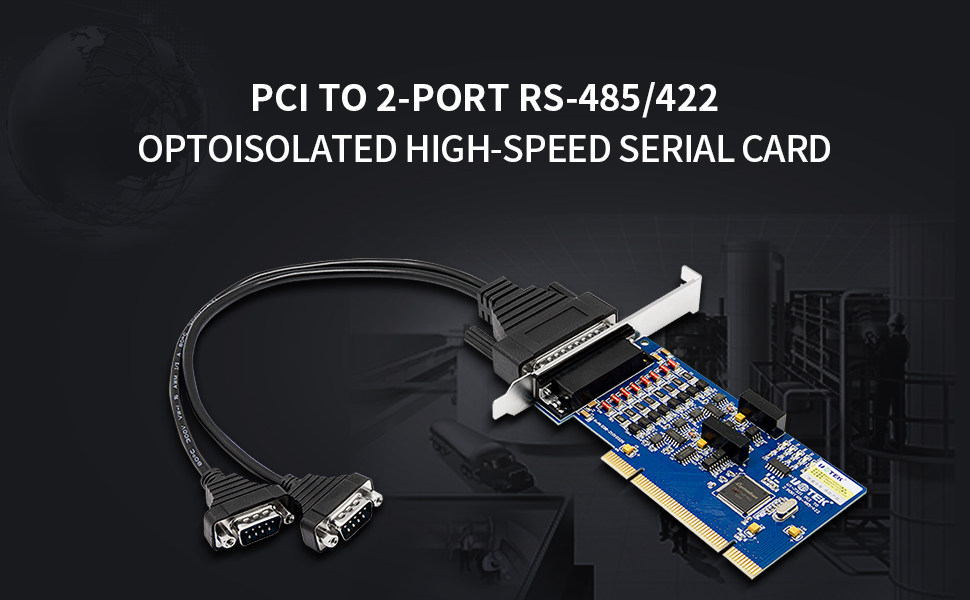

UT-732i PCI multiport serial adapter with optoelectronic isolation is compatible with RS-422/485 standard; it converts PCI signal to balanced differential RS-422/485 signal. With built-in optoelectronic isolator, it provides as high as 2,500Vrms isolated voltage. This device is with lightning and ESD protection, provides 2,000V each wire with lightning surge protection, and surge voltage and instant overvoltage protection on circuit which causing by all reasons; the tiny interelectrode capacitance ensures high speed transmission for RS-422/485 ports.
- Compatible with RS-422, RS-485 standards
Capable of converting single-ended PCI signals to balanced differential RS-422/485 signals
- Built-in optoisolator
Isolation voltage 2500Vrms 500DC continuous DC/DC module
| Weight | 0.4 kg |
|---|---|
| Dimensions | 25 × 20.5 × 5.5 cm |
