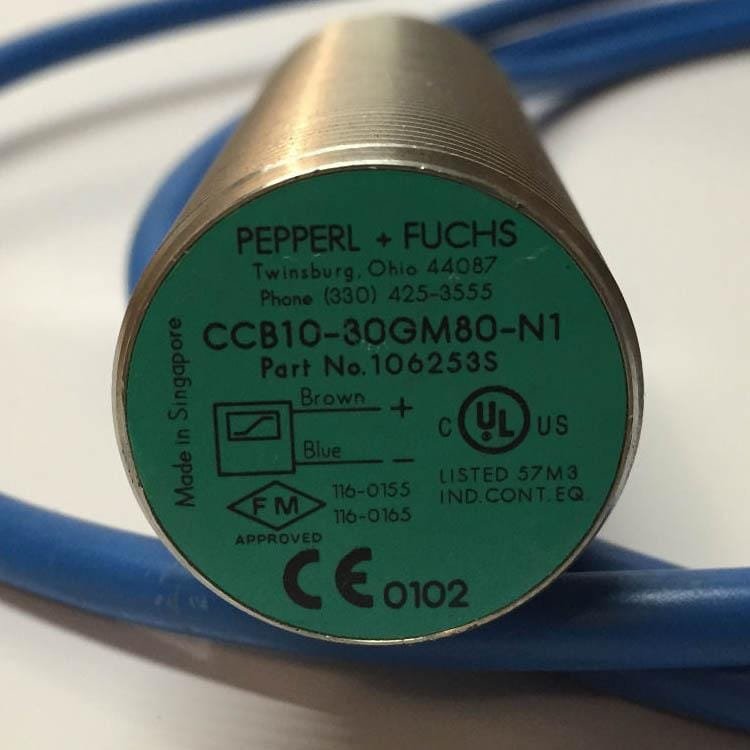

Pepperl & Fuchs (CCB10-30GM80-N1 Capacitive Sensor)
Capacitive sensors can also be used to detect non metallic materials i.e. plastic, paper, fluids etc. Can be used for the detection of levels, or as a hand-held switch.
Specifications
| Attribute | Value |
|---|---|
| Body Style | Barrel |
| Thread Size | M30 x 1.5 |
| Detection Range | 10 mm |
| Supply Voltage | 5.9 → 22.7 V dc |
| Terminal Type | Wire Lead |
| IP Rating | IP67 |
| Maximum DC Voltage | 22.7V |
| Length | 80mm |
| Switching Current | 3 mA |
| Switching Frequency | 0 → 10 Hz |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +70°C |
| Reverse Polarity Protection | Yes |
| Housing Material | Stainless Steel |
