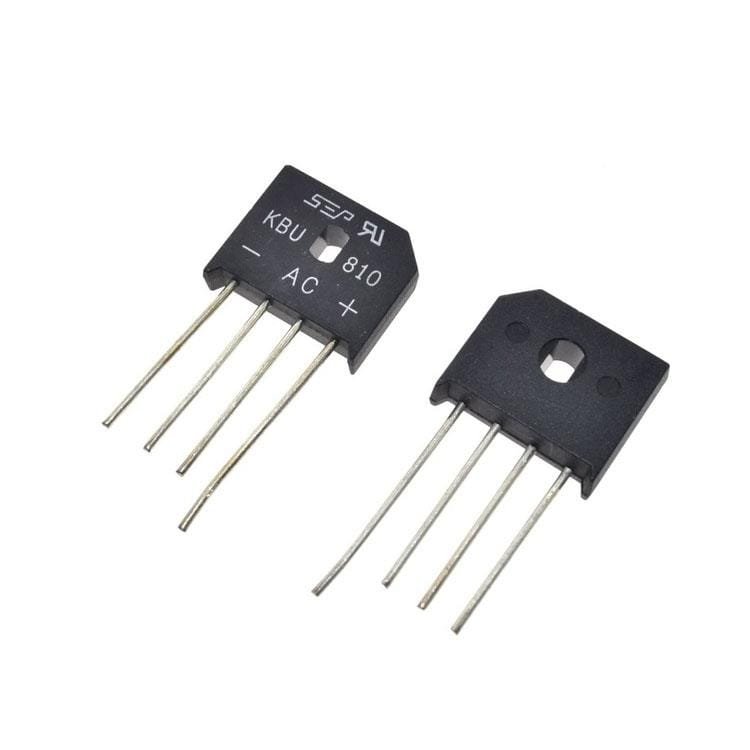

KBU810, Bridge Rectifier, 8A 1000V, 4-Pin

The KBU Series offers a range of bridge rectifiers in 600 V/1000 V with a forward current of 6A up to 25A. There are two types available, the silicon or the glass passivated type (G suffix). They are widely seen on printed circuit board (PCB) applications and are used for AC to DC conversion.

Detailed Description

Part Selection:

Surge overload rating:
-175 A peak – KBU606 / KBU610
-150 A peak – KBU606G / KBU610G
-200 A peak – KBU806 / KBU810
-175 A peak – KBU806G / KBU810G
-240 A peak – KBU1006 / KBU1010
-200 A peak – KBU1006G / KBU1010G
-300 A peak – KBU1506 / KBU1510
-250 A peak – KBU1506G / KBU1510G
-400 A peak KBU2506 / KBU2510

Specifications:

Attribute	Value
Bridge Type	Single Phase
Peak Average Forward Current	8A
Peak Reverse Repetitive Voltage	1000V
Mounting Type	Through Hole
Package Type	KBU
Pin Count	4
Diode Technology	Silicon Junction
Diode Type	Silicon Junction
Configuration	Single
Peak Non-Repetitive Forward Surge Current	200A
Maximum Operating Temperature	+150 °C
Minimum Operating Temperature	-55 °C
Peak Forward Voltage	1V
Peak Reverse Current	300µA
Length	23.7mm
Dimensions	23.7 x 7 x 19.8mm
Junction Capacitance	250pF
Width	7mm
Height	19.8mm
