High Quality 58mm TTL Mini Embedded Serial Thermal Printer | DP-EH600 – Industrial Grade

Original price was: ₨6,250.00.Current price is: ₨5,800.00.

15 Items sold in last 3 months
  • Delivery to Pakistan

Shipping via Leopards

1-3 Business Days (Normally)

Shipping calculated at checkout.

  • Delivery to US

Shipping via DHL, UPS, or FedEx.

3-12 Business Days (Normally)

Shipping calculated at checkout.

Payment Methods:

Overview

  • Compact Design: Small form factor for easy integration into embedded equipment and devices.
  • High-Speed Printing: Delivers fast printing up to 90mm/s.
  • High Resolution: Produces sharp and clear prints with 203 DPI.
  • Interface Options: Supports TTL serial interfaces for easy communication.
  • Reliable & Durable: Features a robust mechanism with a thermal head lifespan of 50km.
  • Paper Compatibility: Uses standard 58mm thermal paper rolls.
  • Low Power Consumption: Operates on a wide power supply range of 5V to 9V DC, ideal for low-power and portable applications.

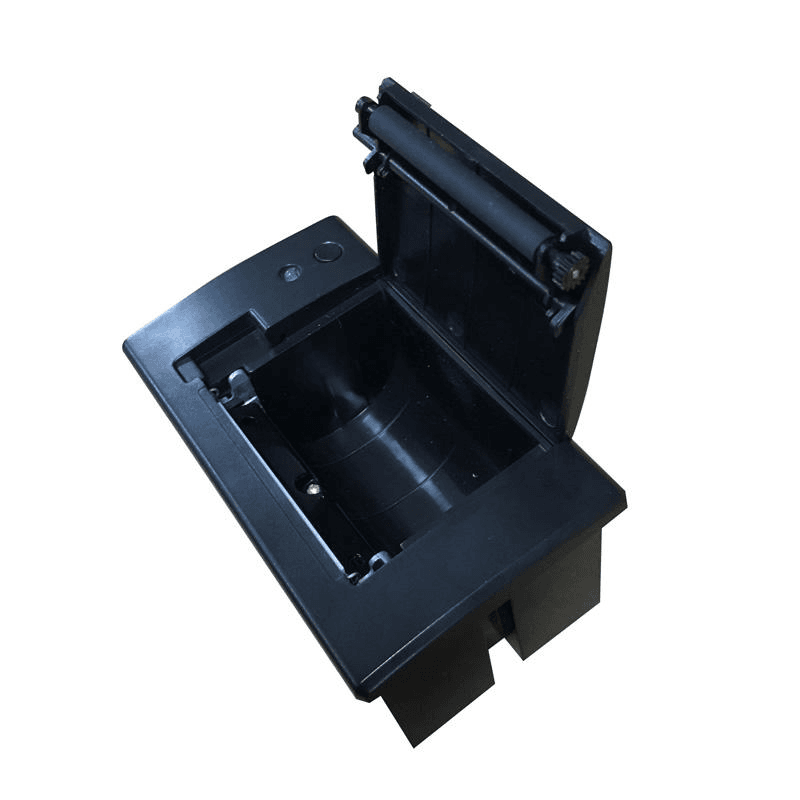

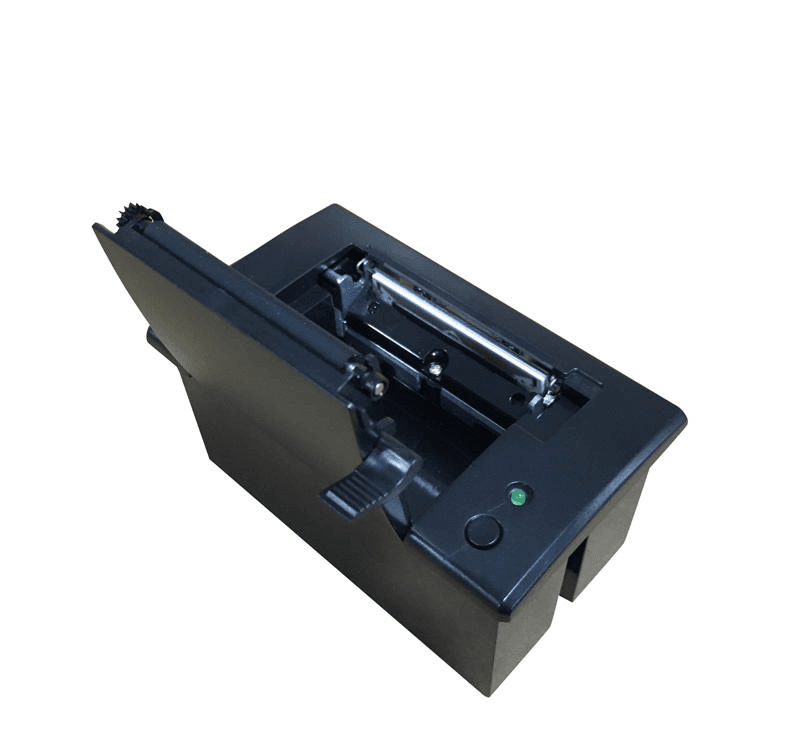

  • Simple Operation: Clamshell design allows for quick and easy paper loading.
  • Versatile Applications: Perfect for medical instruments, electronic scales, kiosks, data loggers, and other embedded systems.

Detailed Description



Integrate High-Speed, Reliable Printing Directly into Your Equipment.

The DP-EH600 is a versatile and compact 58mm embedded thermal printer module, engineered to provide fast, high-quality printing within your existing equipment. Its small footprint, robust design, and simple command interface make it the perfect solution for manufacturers and developers looking to add reliable printing capabilities to a wide array of devices, from medical instruments to industrial electronics and point-of-sale terminals.

With its direct thermal printing technology, the DP-EH600 delivers crisp text and clear graphics without the hassle of ink cartridges or ribbons, ensuring a low-maintenance and cost-effective printing solution for your projects.

Key Features:

  • Ultra-Compact Design: A small form factor allows for easy and unobtrusive integration into space-constrained devices and embedded systems.
  • Simple & Fast Integration: The printer features a standard tTTL logic, enabling straightforward connection and communication with most microcontrollers and host systems.
  • High-Speed & Quality Printing: With a printing speed of up to 90mm/s and a resolution of 203 DPI, the DP-EH600 delivers fast, clear, and professional-looking receipts and labels.
  • Low Power Consumption: Engineered for efficiency, this printer is ideal for battery-powered or portable equipment, minimizing the impact on your device’s overall power budget.
  • Robust and Reliable: Built for continuous operation, the printer’s durable mechanism is rated for an extended lifespan, ensuring consistent performance in demanding environments.
  • Easy Media Handling: The simple clamshell design allows for quick and effortless loading of standard 58mm thermal paper rolls.

Technical Specifications

FeatureSpecification
Printing MethodDirect Thermal
Print Width48mm
Resolution203 DPI (8 dots/mm)
Printing Speed90mm/s (max)
InterfaceTTL
Paper Roll Width58mm
Paper Roll Diameter50mm (max)
Power Supply5V to 9V DC
Dimensions (Installation)102mmx56mmx50mm (L x W x H)
TPH Life50km
Operating Temperature-10°C to 50°C



Ideal for These Applications:

  • Medical Instruments: Integration into blood analyzers, patient monitors, and other diagnostic equipment for printing test results and reports.
  • Electronic Scales: Seamlessly embeds into digital scales for printing weight tickets and receipts.
  • Data Loggers & Analyzers: Provides a compact printing solution for on-site data printouts.
  • Embedded Equipment: Perfect for control panels, security systems, and vending machines that require a built-in printing function.
  • Point-of-Sale (POS) Systems: Can be used in compact or mobile POS terminals for printing receipts.

Streamline your product design with the DP-EH600. Contact us today to Order.
