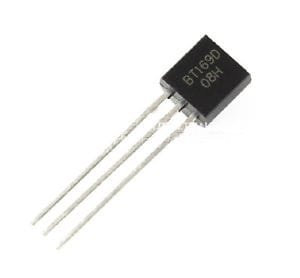

Phase Control Thyristors, NXP Semiconductors
Thyristors – NXP Semiconductors
A Thyristor is a solid-state semiconductor device with four layers of alternating N and P-type material. They act as bistable switches, conducting when their gate receives a current trigger, and continue to conduct while they are forward biased. Thyristors are synonymous to Silicon-Controlled Rectifier (SCR).
Specifications
| Attribute | Value |
|---|---|
| Rated Average On-State Current | 0.5A |
| Thyristor Type | SCR |
| Package Type | SPT |
| Repetitive Peak Reverse Voltage | 400V |
| Surge Current Rating | 9A |
| Mounting Type | Through Hole |
| Maximum Gate Trigger Current | 0.2mA |
| Maximum Gate Trigger Voltage | 0.8V |
| Maximum Holding Current | 5mA |
| Pin Count | 3 |
| Length | 4.8mm |
| Width | 4.2mm |
| Height | 5.2mm |
| Dimensions | 4.8 x 4.2 x 5.2mm |
| Peak On-State Voltage | 1.7V |
| Repetitive Peak Off-State Current | 0.1mA |
| Repetitive Peak Forward Blocking Voltage | 400V |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
