Description:
Product Specifications:

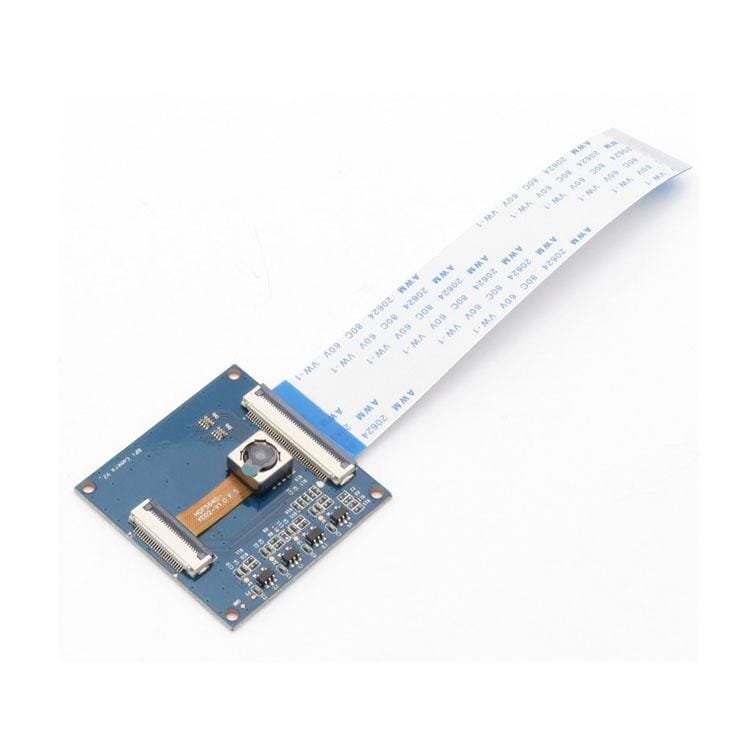

| Product name | Banana PI Camera Module |
| Product description | High definition camera module for BananaPi card via the CSI connector designed specifically for interfacing tocameras. Provides high sensitivity, low crosstalk and low image noise capture in a small and light design. |
| image sensor | Omnivision 5640 CMOS image sensor in a self-fouces modules with integral IR filter (650 ± 10nm) |
| still resolution | 5 Megapixels |
| active array format | 2592 × 1944 |
| Max frame rate | 1080p 30fps @ 24Mhz |
| image formats | JPEG PNG YUV420 RGB888 |
| Video formats | Raw h.264 |
| connection to Banana Pi | 40 Pin FPC Interface for Camera Sensor (CSI-0) |
| image control functions | automatic exposure control (AEC)
automatic white balance (AWB) Automatic calibration black level (ABLC) automatic band filter mirror and vibration |
| Temp range | operation: -30 ° C to 70 ° C
A stable image: 0 ° C to 50 ° C |
| lens size | 1/4 & Prime; |
| Dimension | 36 × 32 × 10mm |
| I2C address | 0x78 |
| weight | 8g |
Banana pi CSI Camera Connector
CSI Camera Connector is an FPC-pin connector that allows you to connect external camera module with a correct signal mapping pin.
