Description:

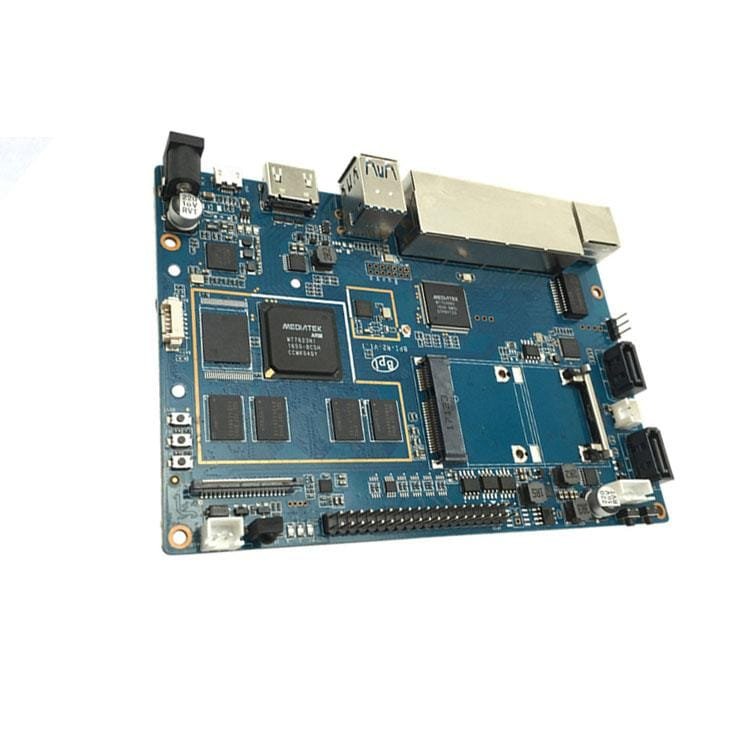

BPI-R2 integrated quad-core ARM Cortex-A7 MP supports 1.3 GHz. BPI-R2 router provides a variety of peripheral interfaces, including HDMI TX HD interface, MIPI DSI screen interface, PCIe2.0 interface, USB2.0 OTG port, USB3.0 port, SATA port, 5 Gigabit Ethernet port, onboard 802.11a/b/g/n wifi wireless & BT4.1 Bluetooth, and support 802.11ac/n WLAN via mini PCI-e
BPI-R2 system supports Android5.1, and fully supports OpenWRT, Debian linux, Ubuntu linux, Raspbian and Other embedded operating systems. Size is exactly the same size as BPI-R1, supports 1080P y HD video input, 40 PIN GPIO is consistent with Raspberry Pi 3.
The main specifications are as follows:
MediaTek MT7623N, Quad-code ARM Cortex-A7
Mali 450 MP4 GPU
2G DDR3 SDRAM
Mini PCIE interface.
**support SATA interface (option support 2 stat)**
MicroSD slot supports up to 256GB expansion
8G eMMC flash (option 16/32/ 64G)
MIPI display interface support
5 10/100/1000 Mb Ethernet port
(2) USB 3.0 and (1) USB 2.0 otg port
1080P high-definition video playback
HDMI port and multi-channel audio output
WIFI&Bluetooth 4.1 with 802.11B/G/ N onboard
Built-in 3.7V Lithium Battery Charging Circuit
BPI-R2 hardware interface diagram:
BPI-R2 hardware specification:
| Hardware | Specification of Banana pi BPI-R2 |
|---|---|
| Soc | MediaTek MT7623N, Quad-code ARM Cortex-A7 |
| GPU | Mali 450 MP4 |
| SDRAM | 2GB DDR3 (shared with GPU) |
| Power | 12V @ 2A via DC power |
| Features | |
| Low-level peripherals | 40 Pins Header, 28×GPIO, some of which can be used for specific functions including UART, I2C, SPI, PWM, I2S. |
| On board Network | 5x 10/100/1000Mbps Ethernet (MT7530) |
| Wifi | Wifi 802.11 a/b/g/n 2.4GHz/ 5GHz (MT6625L) |
| Bluetooth | BT4.1 BLE with MTK6625L chip |
| On board Storage | MicroSD (TF) card, SATA 6Gbps, eMMC |
| Display | HDMI (Type A) output with HDCP 1.4, resolutions up 1920×1200; MIPI Display Serial Interface (DSI) interface(4 data lanes) |
| Video decoder | Multi-format FHD video decoding, including Mpeg1/2, Mpeg4, H.263, H.264, etc H.264 high profile 1080p@60fps, HEVC/H.265 1080P@60fps |
| Video encoder | VP8 encoder: 1080p@30fps H.264 encoder: high profile 1080p@30fps |
| Audio outputs | HDMI, I2S audio |
| PCIE | 1 pcie interface & 1 pcie pin define interface |
| USB 3.0 | 2x USB 3.0 host |
| USB 2.0 | 1x USB 2.0 OTG |
| Buttons | Reset button, Power button, U-boot button |
| Leds | Red, Green, Blue |
| Other | IR reciever |
| Sizes | 148 mm × 100.5mm |
| Weight | 100g |
