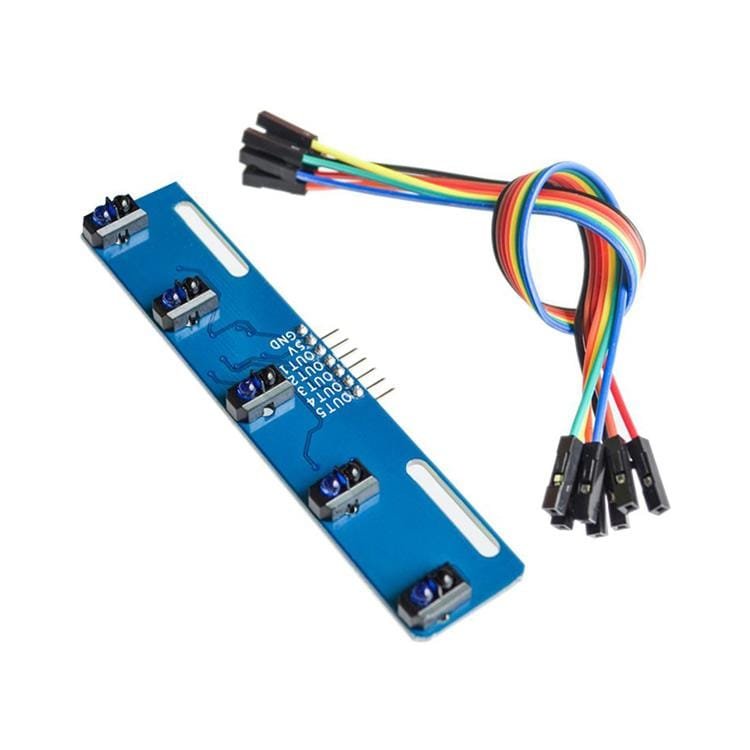

Technical Specifications:
Chip: 74HC14D
Operating voltage: 3.3 V ~ 5 V
Output mode: digital signal
Measurements of distance: 1 cm ~ 1.5 cm
Detection Sensor: TCRT5000L
Signal detection: detection of black line of output low, White Linear Detection high, exceeding detection range low
LED-Status: Detection of black LED line, White Linear LED LED detection
Connector Configuration:
1. VCC: VCC is a power input port that could access 3.3V ~ 5V voltage
2. GND: GND-negative power supply input
3. OUT1 ~ 5: the output is the signal output port, MCU Link i / o port
