NEXTION 3.5 Inch HMI Touchscreen LCD Display – Discovery Series NX4832F035 AI Smart Resistive Touchscreen with TFT Display Serial Port, USART and RTC – Commercial Grade
Original price was: ₨13,500.00.₨12,500.00Current price is: ₨12,500.00.

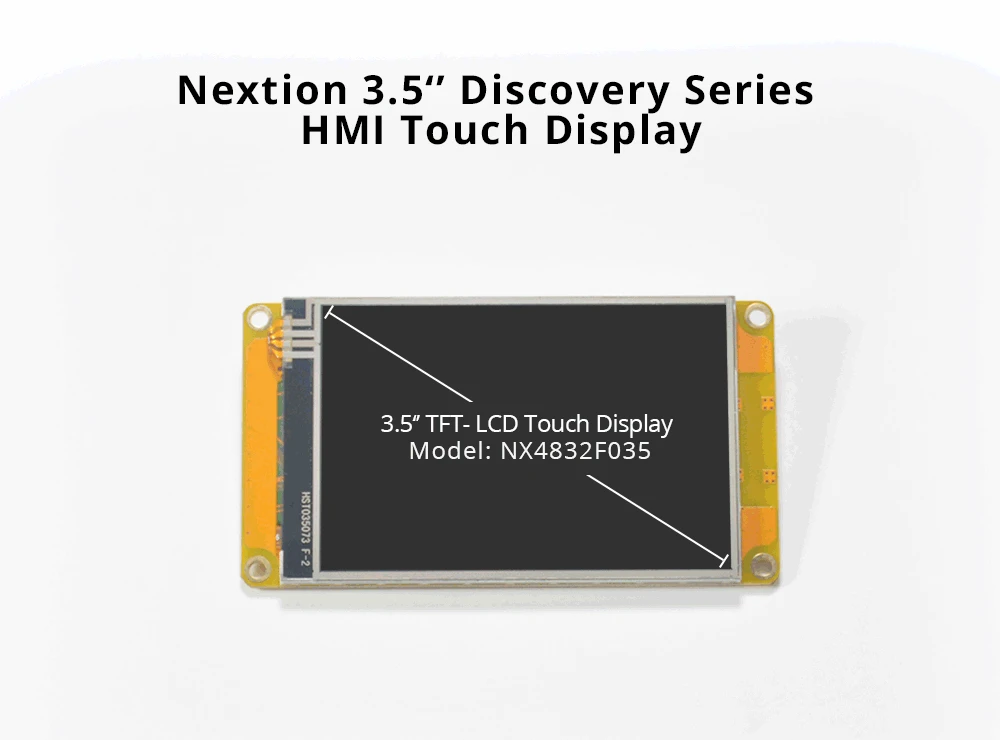

NX4832F035 is a Nextion Discovery series 3.5” resistive HMI touchscreen.

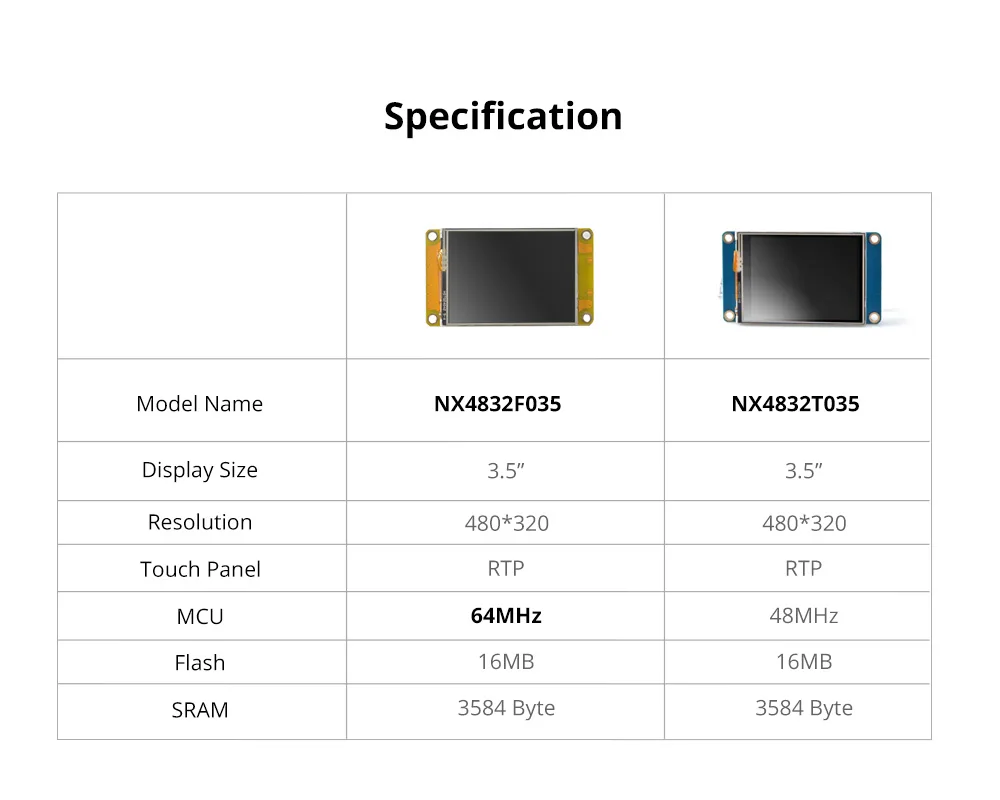

Hardware Feature:
- 3.5” LCD TFT Resistive HMI touch display module
- 480 x 320 screen resolution
- RGB 65K true-to-life colours
- Onboard ARM® Cortex®-M0+ 64MHz MCU
- 3584 Byte SRAM
- 16 MB Flash memory
- XH2.54 4 Pins (+5V, TX, RX, GND) TTL serial interface
NEXTION 3.5 Inch Multifunctional HMI Display Module Compatible with Arduino and Raspberry Pi (Discovery / F Series )
What is the Price of 3.5 inch NEXTION HMI LCD in Pakistan?
You can now purchase this NEXTION 3.5 inch display (F Series) for just Rs. 12,500 from Techonics LTD, the Wholesaler and distributor of TJC and Nextion in Pakistan. This is a significant discount from the previous price of Rs. 13,500.
Description:
Nextion Discovery Series: A Powerful and Affordable HMI Solution
Key Features:
- High-Performance MCU: Powered by a 64 MHz processor, ensuring smooth and responsive operation.
- Advanced Image Compression: Store more images in less space, optimizing memory usage.

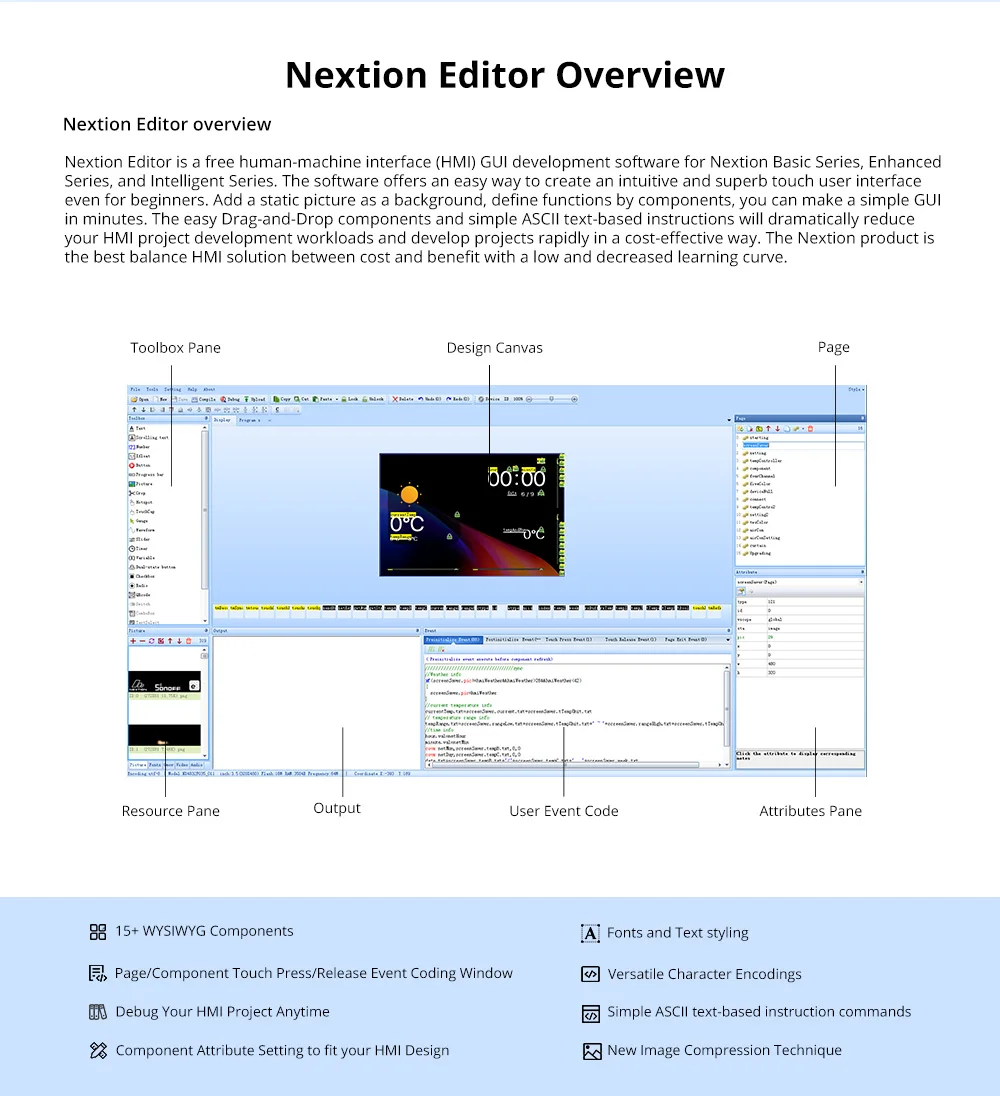

- User-Friendly Software: Develop stunning HMIs with the
- intuitive Nextion Editor, featuring drag-and-drop components and simple scripting.
- Cost-Effective: Affordable solution without compromising performance.
Ideal for:
- Industrial automation
- Home automation
- Automotive applications
- Medical devices
- Consumer electronics
Why Choose Nextion Discovery Series?
- Enhanced Performance: Experience faster response times and smoother animations.
- Increased Storage Capacity: Accommodate more complex graphics and interfaces.
- Simplified Development: Quickly create professional-looking HMIs with minimal effort.
- Competitive Pricing: Enjoy a cost-effective solution that delivers exceptional value.
Upgrade Your Projects with Nextion Discovery Series Today!
NX4832F035 is a Nextion Discovery series 3.5” HMI touchscreen
• 3.5″ LCD-TFT HMI Display
• STM32GO ARM® Cortex®-M0+ 64MHz Onboard MCU Processor
• Fonts Creator with Versatile Character Encodings
• Low Learning Curve Text-based Instruction Set
• Support 15+ Amazing WYSIWYG Components
• New Nextion Cost-effective HMI Solution

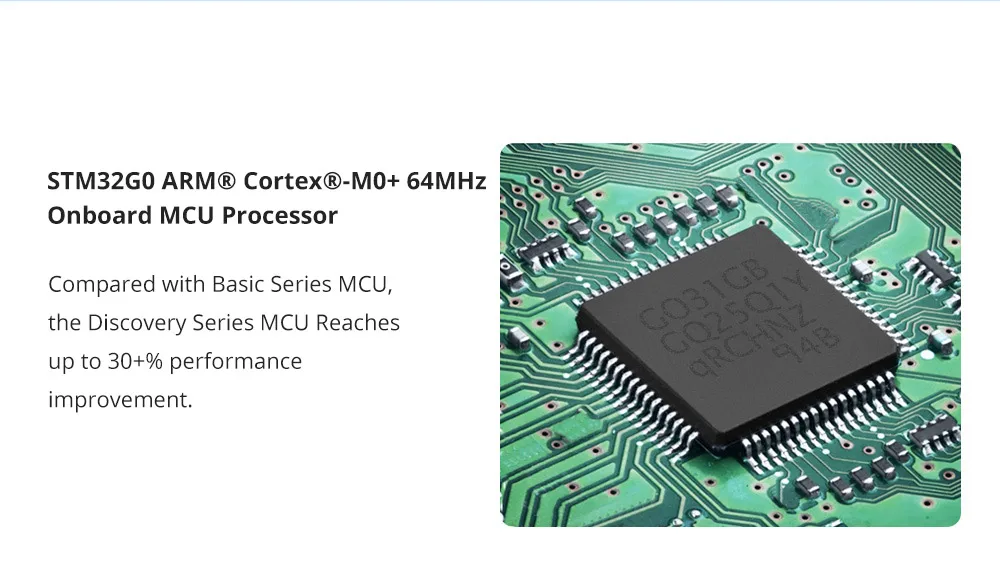

STM32G0 ARM® Cortex®-M0+ 64MHz Onboard MCU Processor
Compared with Basic Series MCU, the Discovery Series MCU Reaches up to 30+% performance improvement.

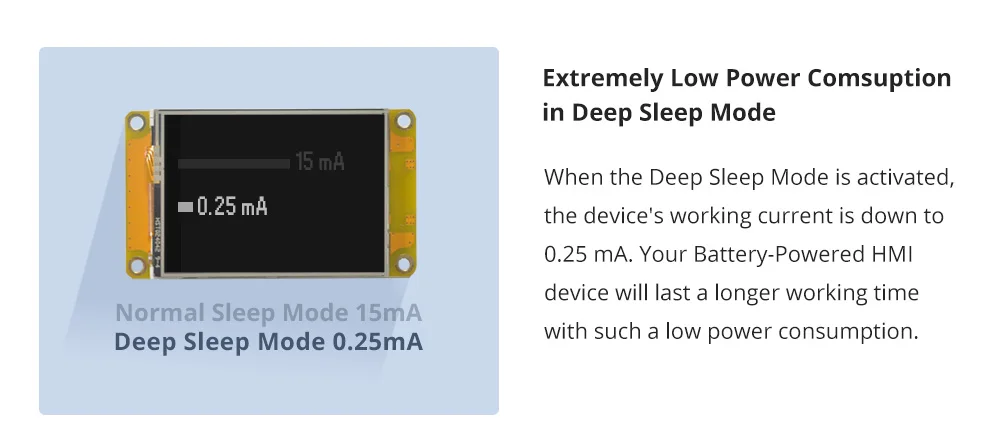

Extremely Low Power Comsuption in Deep Sleep Mode
When the Deep Sleep Mode is activated, the device’s working current is down to 025mA. Your Battery-Powered HMI device will last a longer working time with such a low power comsuption.

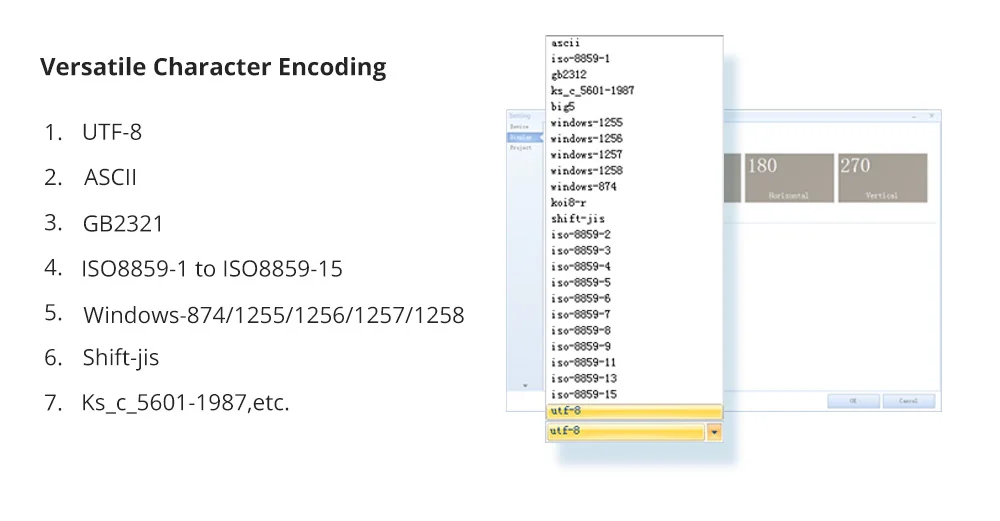

Versatile Character Encoding

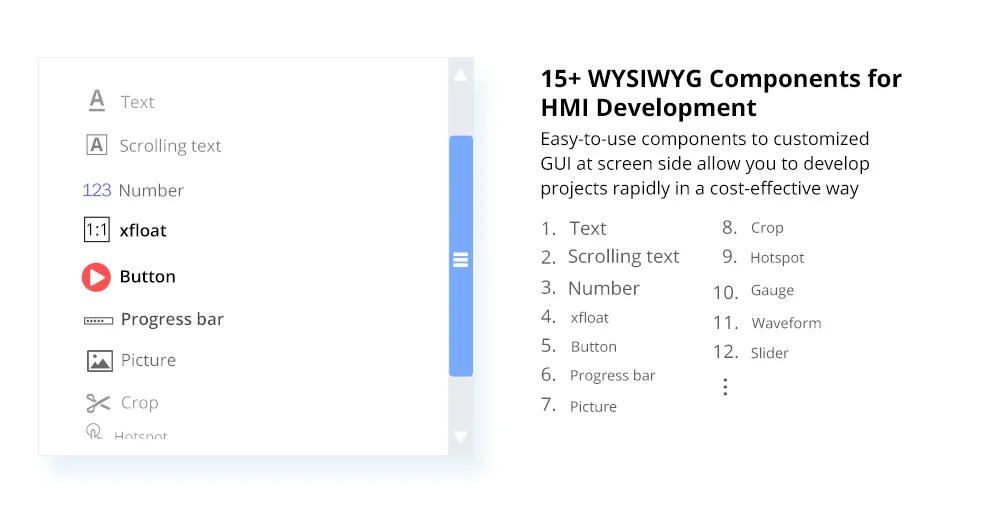

15+ WYSIWYG Components for HMI Development
Easy-to-use components to customized GUI at screen side allow you to develop projects rapidly in a cost-effective way.

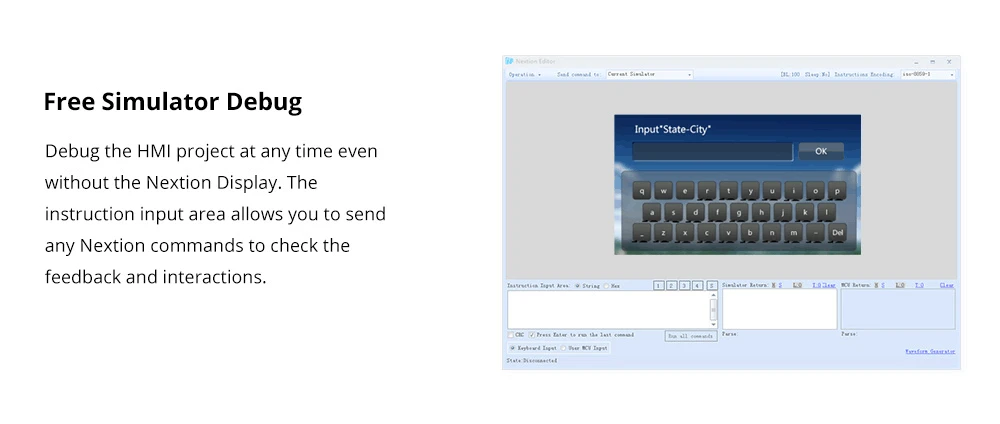

Free Simulator Debug
Debug the HMI project at any time even without the Nextion Display. The instruction input area allows you to send any Nextion commands to check the feedback and interactions.

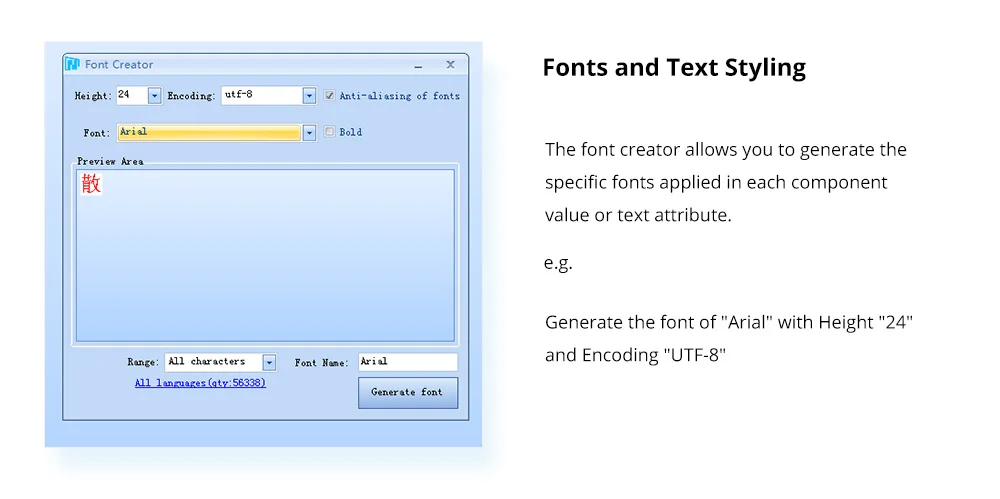

Fonts and Text Styling

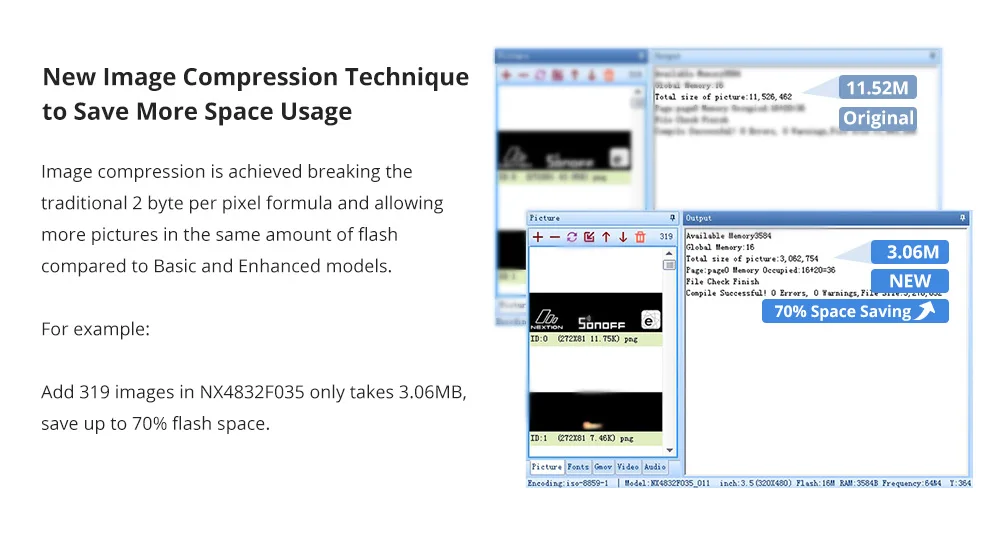

New Image Compression Technique to Save More Space Usage
Image compression is achived breaking the traditional 2 byte per pixel formula and allowing more pictures in the same amount of flash compared to Basic and Enhanced models.

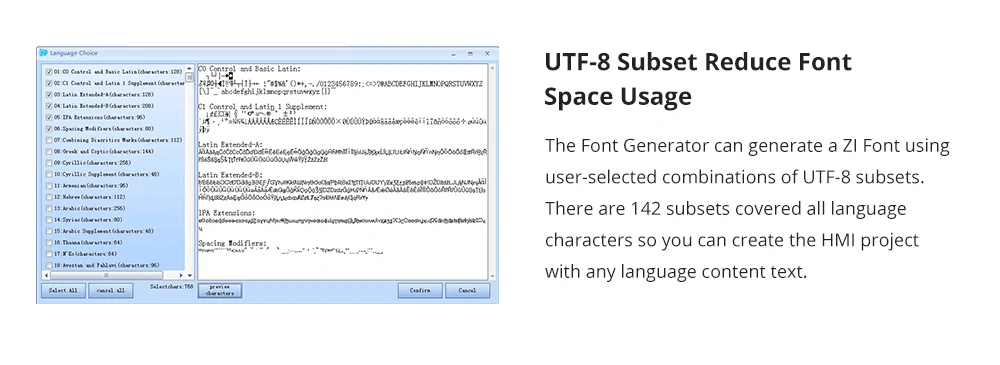

UTF-8 Subset Reduce Font Space Usage
The Font Generator can generate a ZI Font using user-selected combinations of UTF-8 subsets. There are 142 subsets covered all language characters so you can create the HMI project with any language content text.

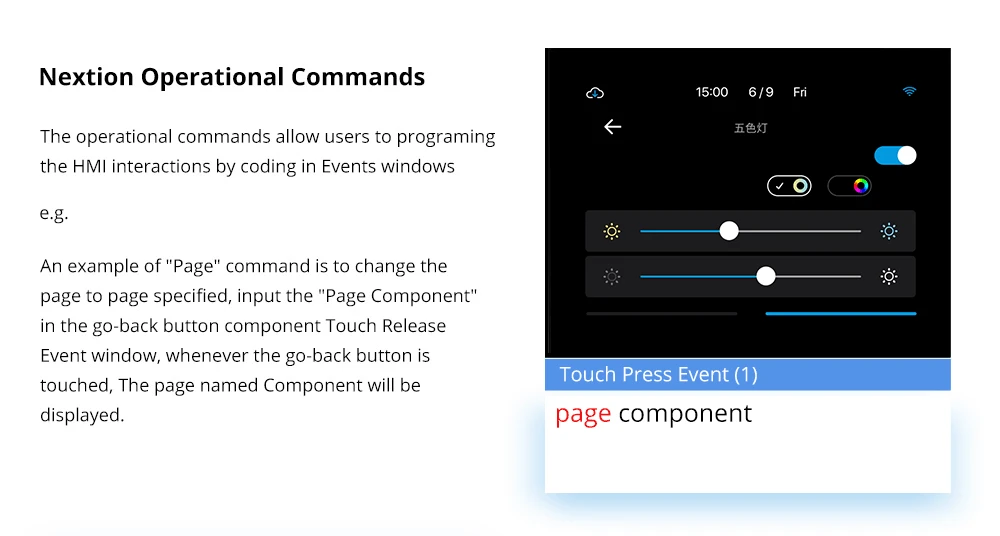

Nextion Operational Commands
The operational commands allow users to programing the HMI interactions by coding in Events windows.

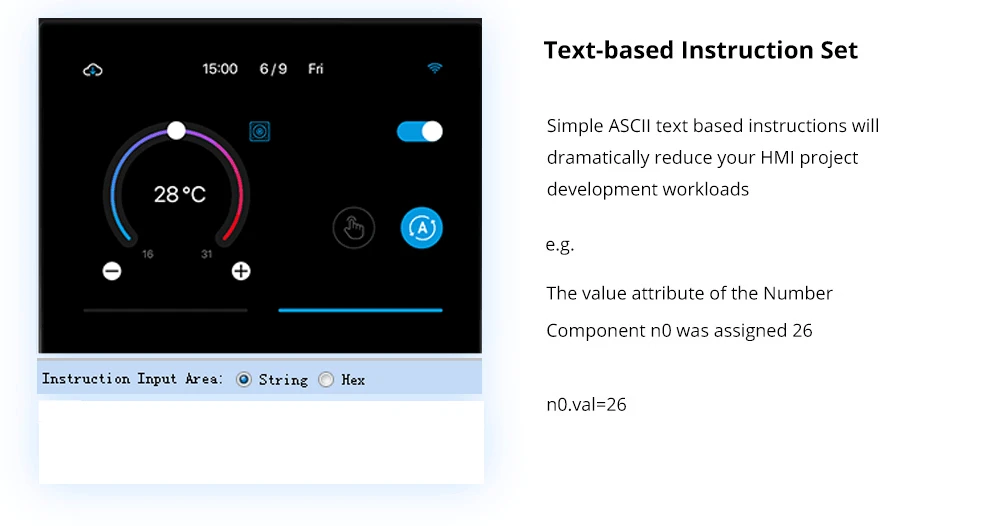

Text-based Instruction Set
Simple ASCII text based instructions will dramatically reduce your HMI project development workloads.

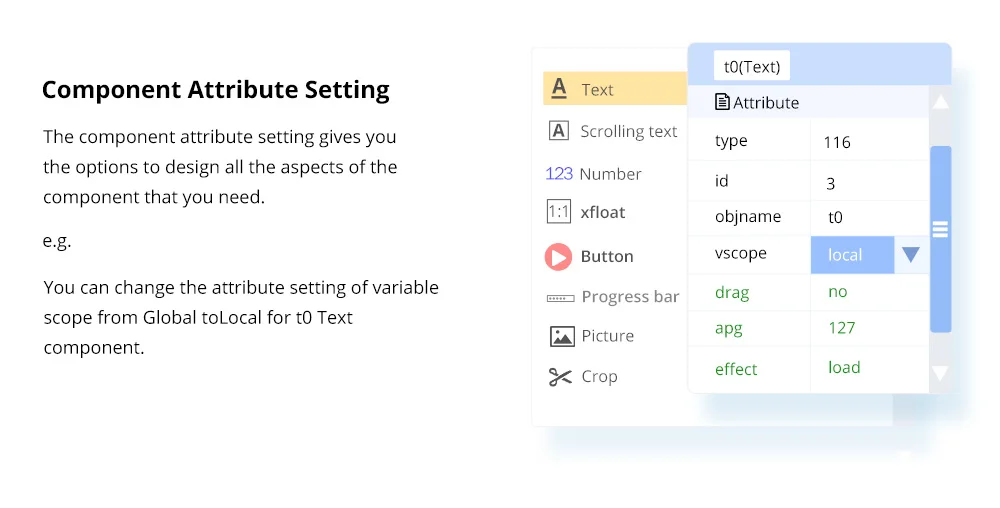

Component Attribute Setting
The component attribute setting gives you the options to design all the aspects of the component that you need.

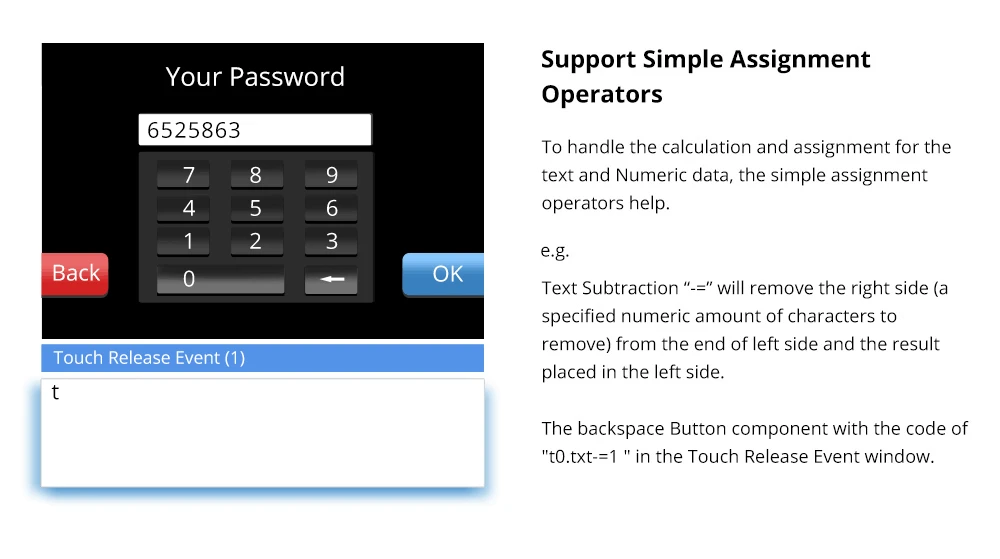

Support Simple Assignment Operators
To handle the calculation and assignment for the text and Numeric data, the simple assignment operators help.
| Weight | 0.085 kg |
|---|---|
| Dimensions | 12 × 7.5 × 3 cm |
