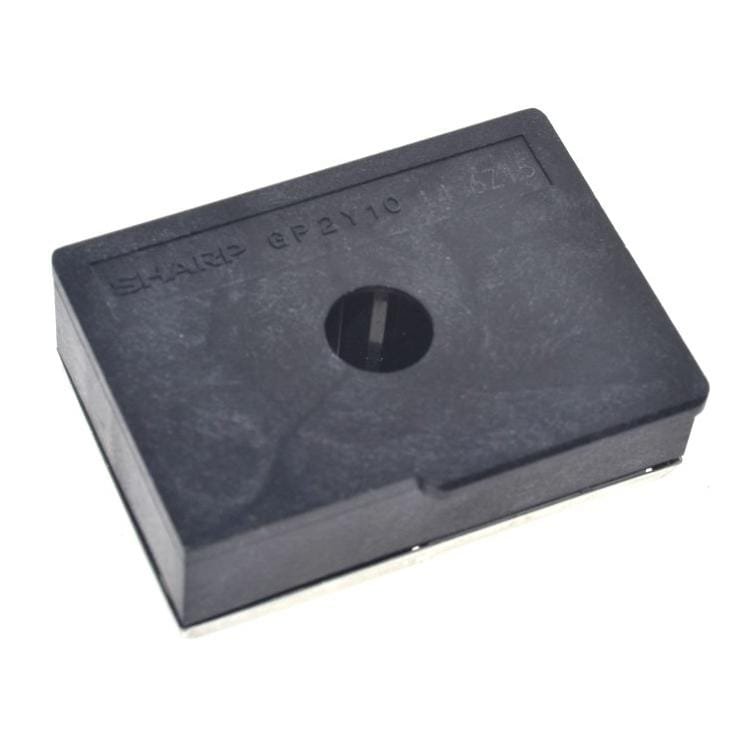

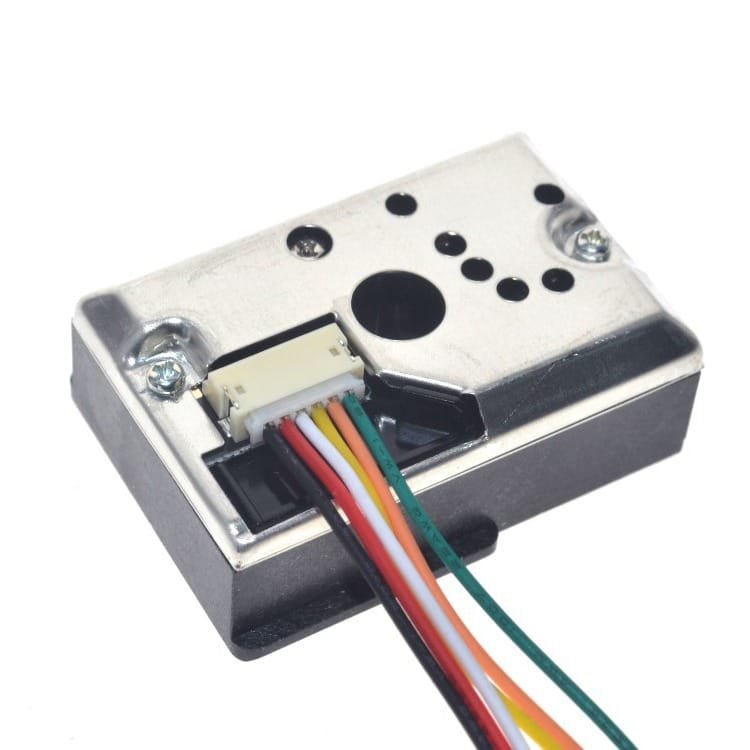

GP2Y1010AU0F (Compact Optical Dust Sensor)
The Sharp Optical Dust Sensor (GP2Y1010AU0F) is especially effective in detecting very fine particles like cigarette smoke, and is commonly used in air purifier systems.
Technical specifications:
Supply voltage: DC5 ± 2 V
Operating current: 20mA (peak)
Sensitivity: 0.5 V / (0.1 mg / m3)
Minimum particle detection level: 0.8 m
Net air pressure: 0.9 V typ.
Operating temperature: -10 ~ 65
Storage temperature: -20 ~ 80
Size: 46 mm × 30 mm × 17.6 mm
Weight of the size: 15 g
Usage: mainly used for dust removal, alarm equipment, air purification equipment, dust collectors, – fire alarms, etc. Industrial equipment can detect smoke particles, pollen and other particles
